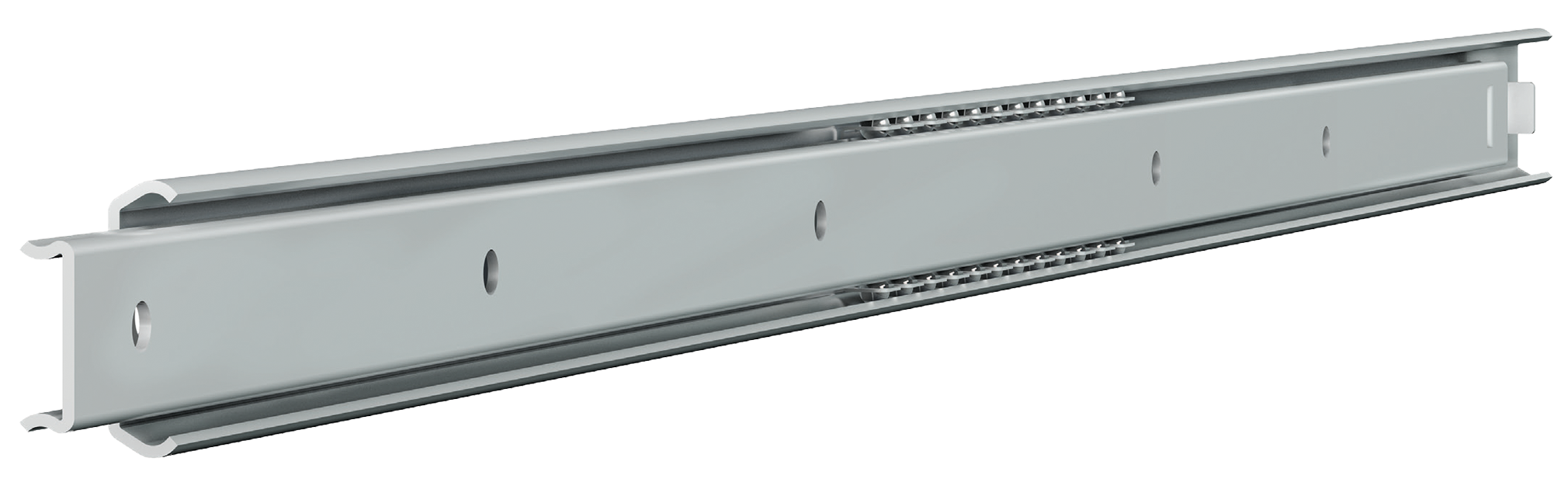

Drawer runners, sliding systems for furniture and furniture components
Carrying capacity kg 30.
The carrying capacity is referred to the maximum load for a pair of side mounted slides (mm 500).
The horizontal mounting (flat) reduces the carrying capacity to approximately 50% of the side mounted capacity.

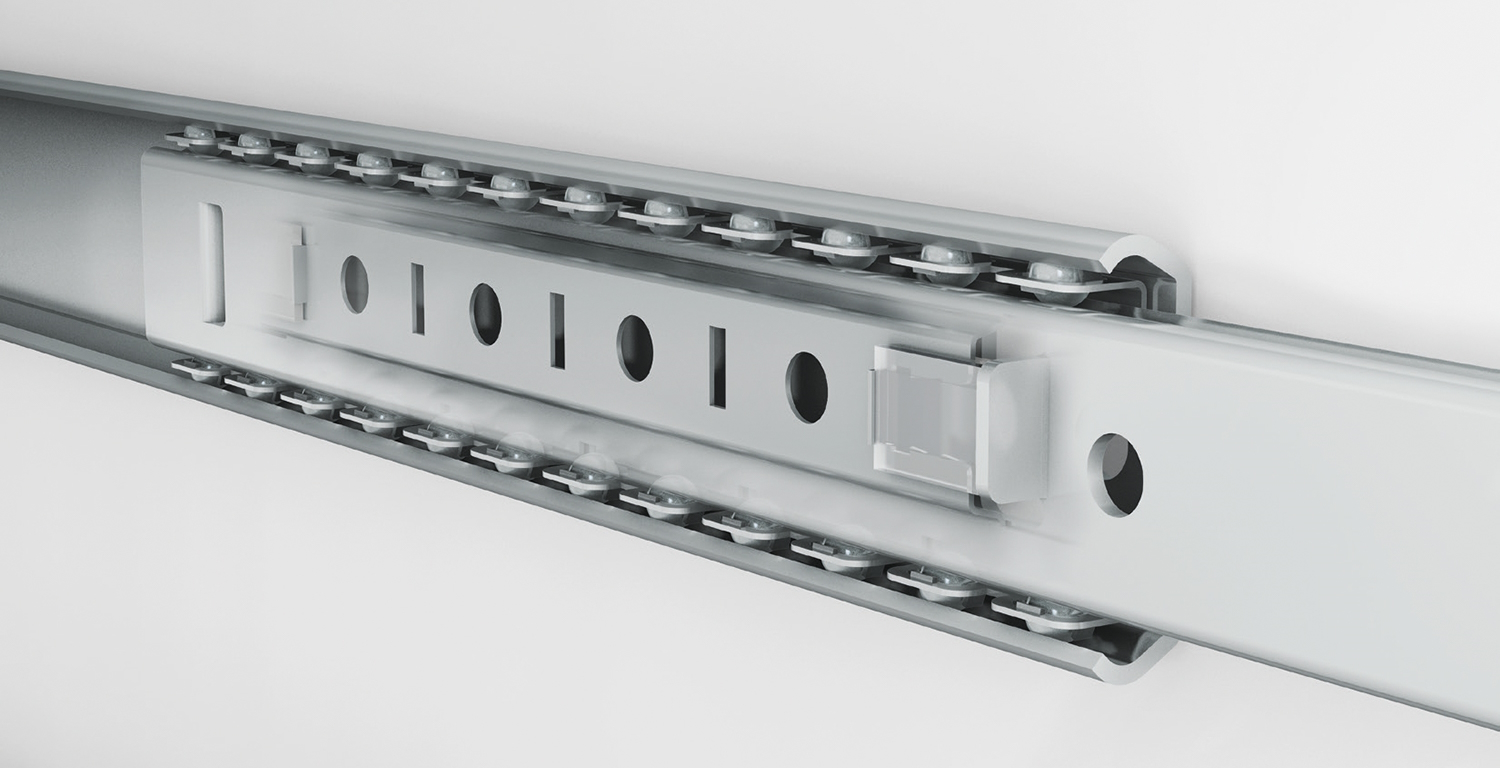

Metal cage with balls Ø 3/16″.

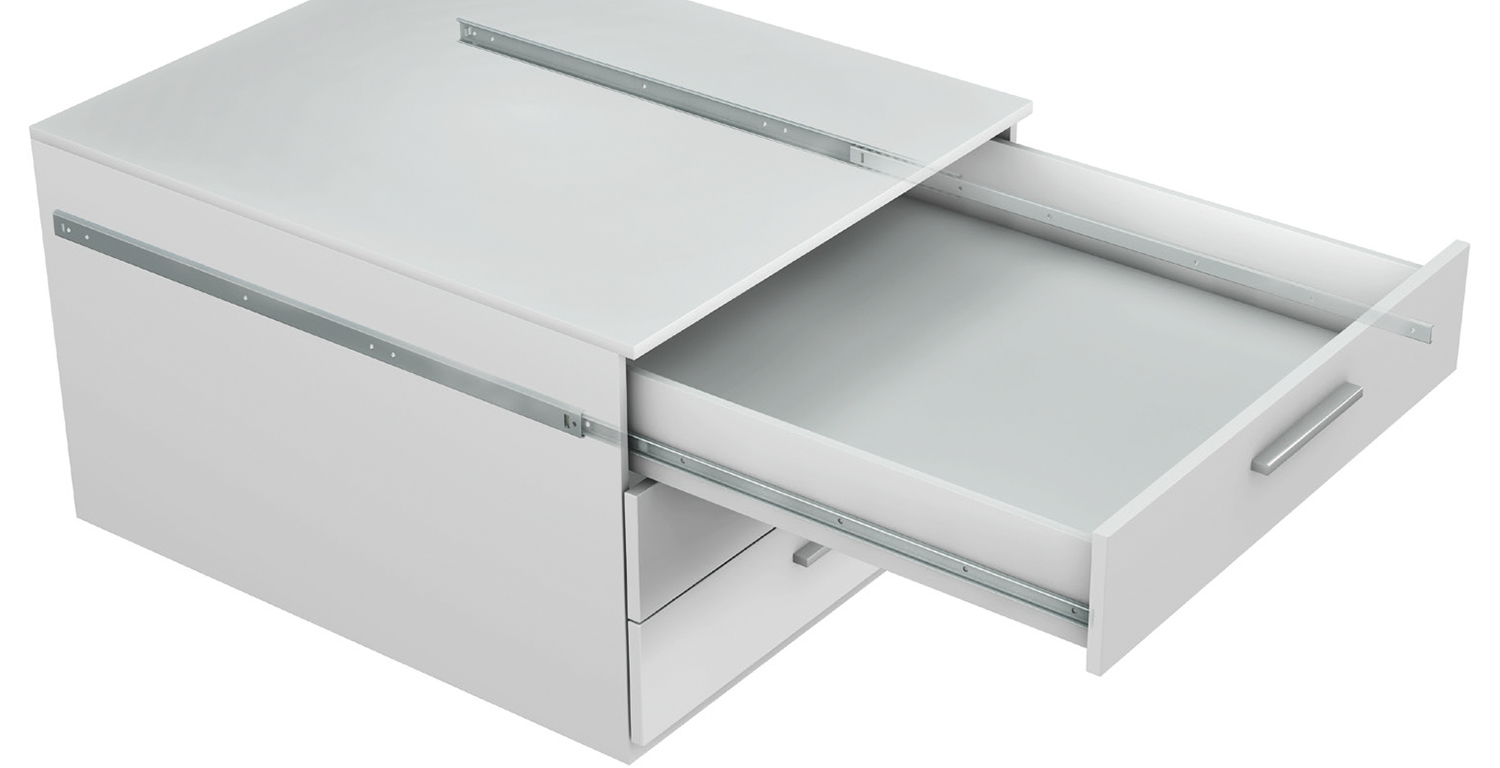

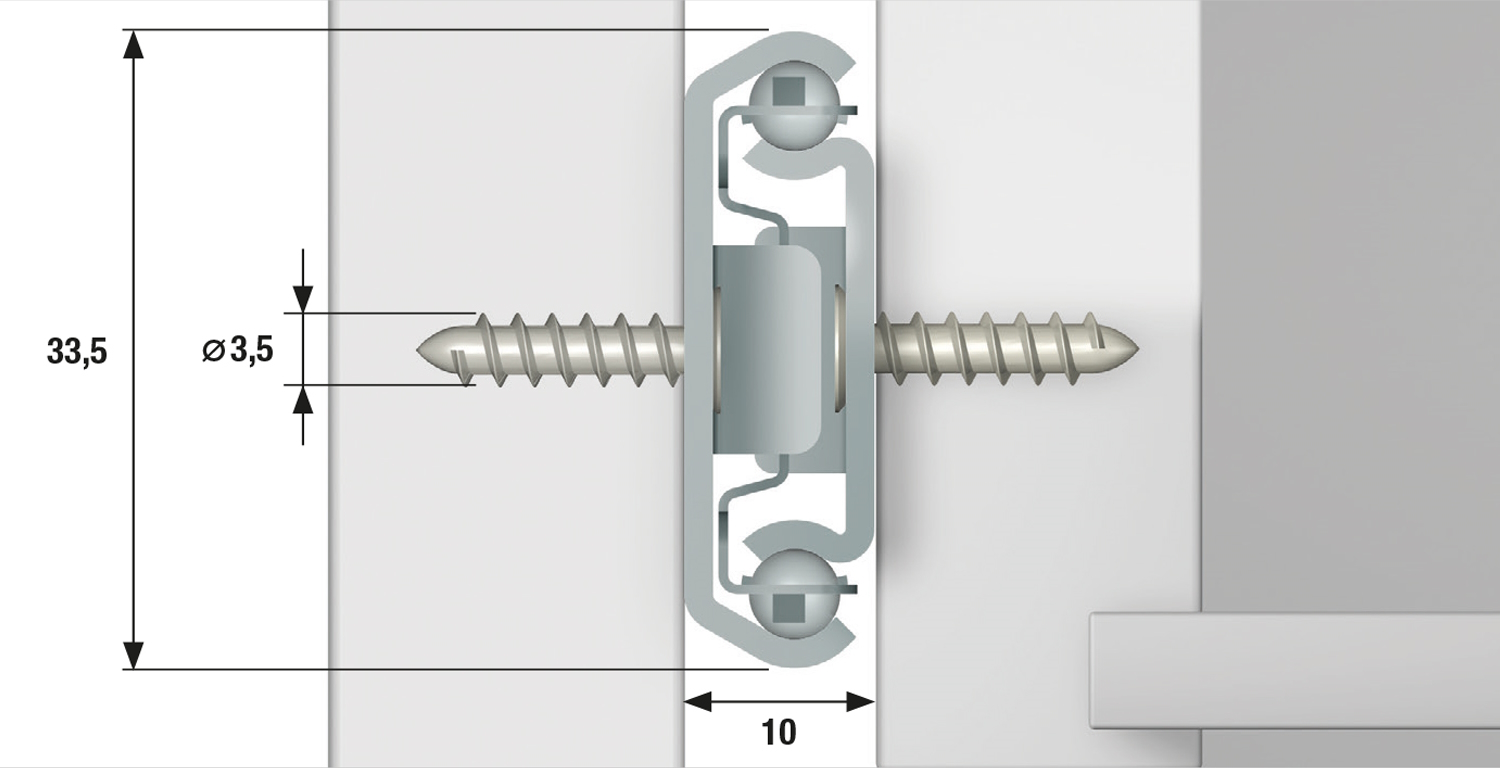

Side mounting.
Bayonet mounting available on request.

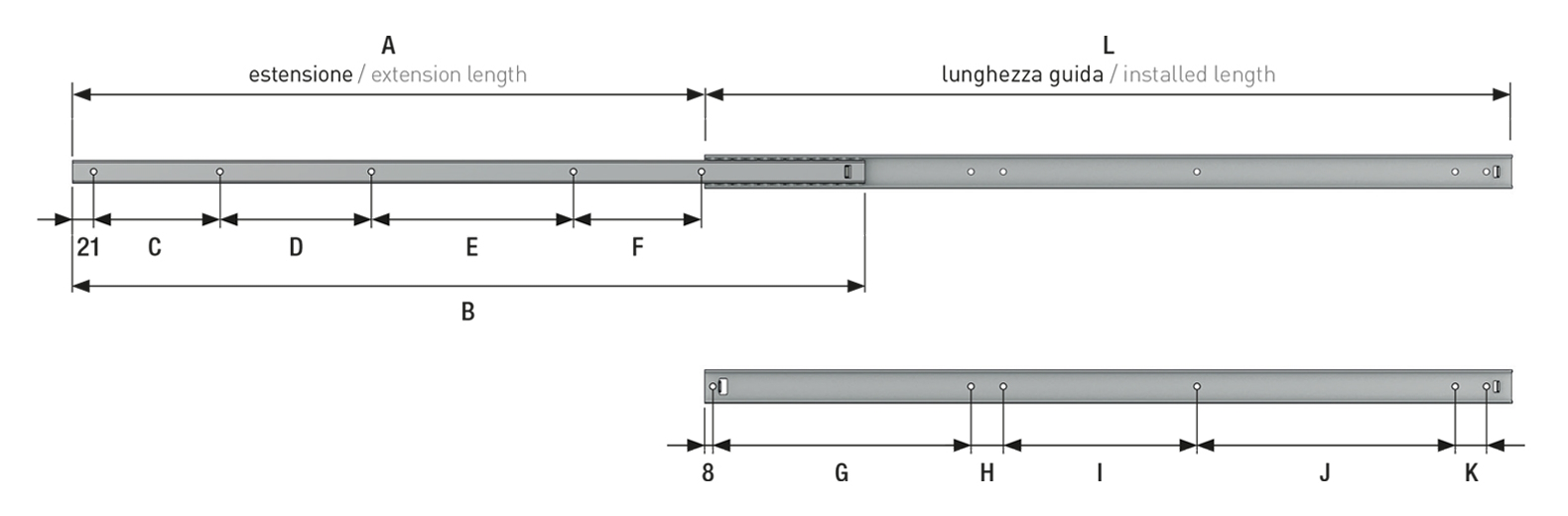

single extension
side mounting
horizontal mounting
on demand - bayonet mounting.
