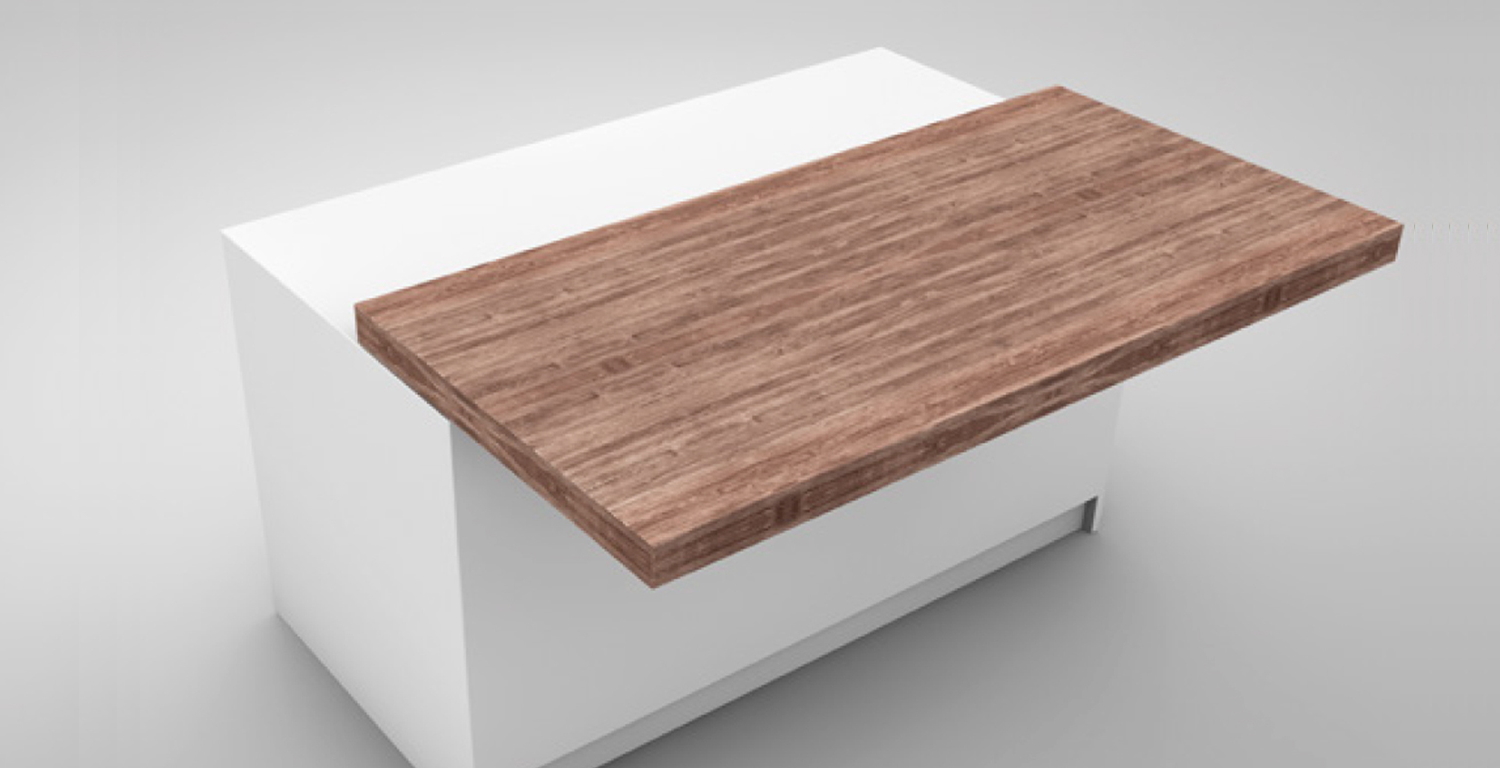

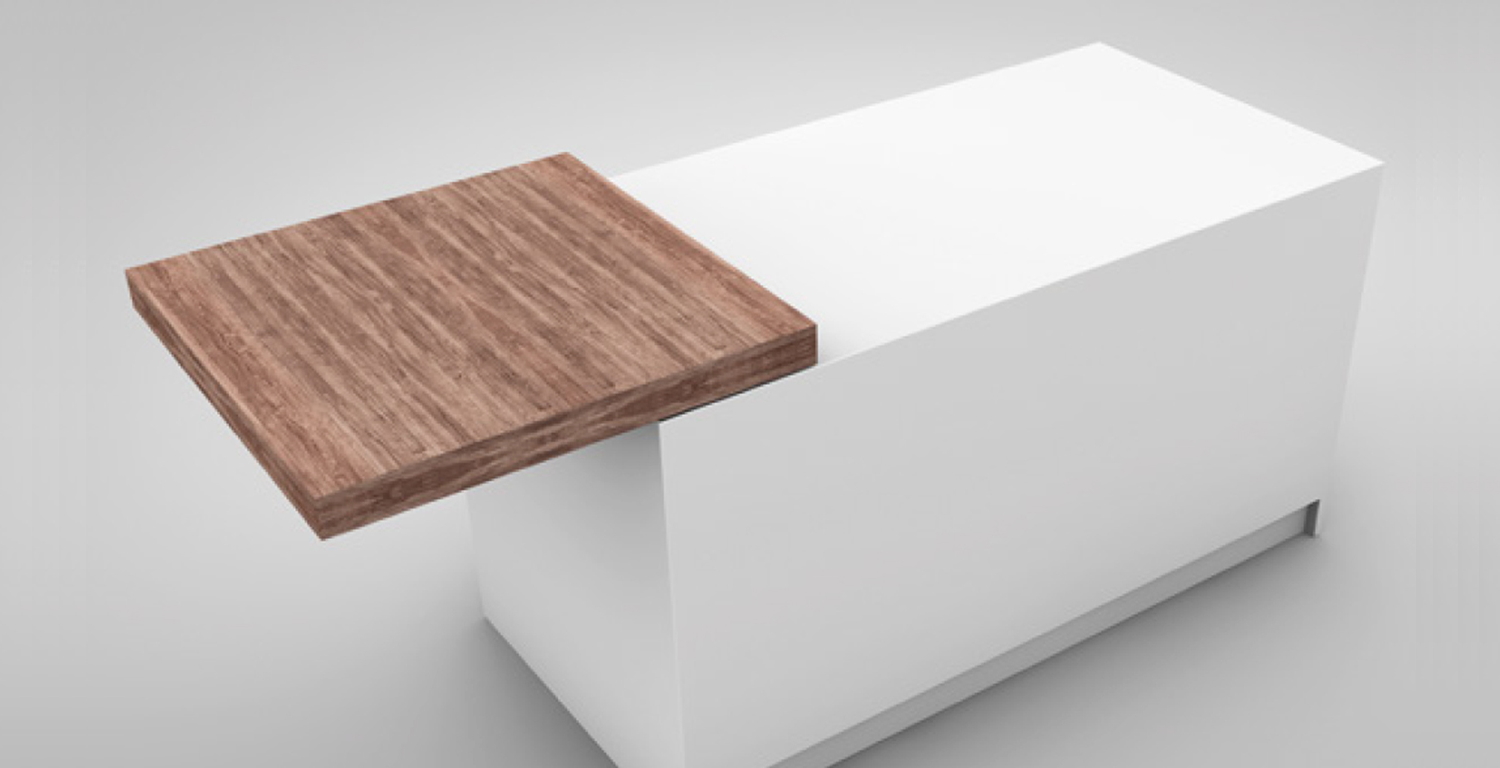

Runners made of cold drawn steel designed to allow the longitudinal, lateral or diagonal sliding of surfaces and kitchen tops.
The mechanism, invisible once assembled, is equipped with hold-in and hold-out device.

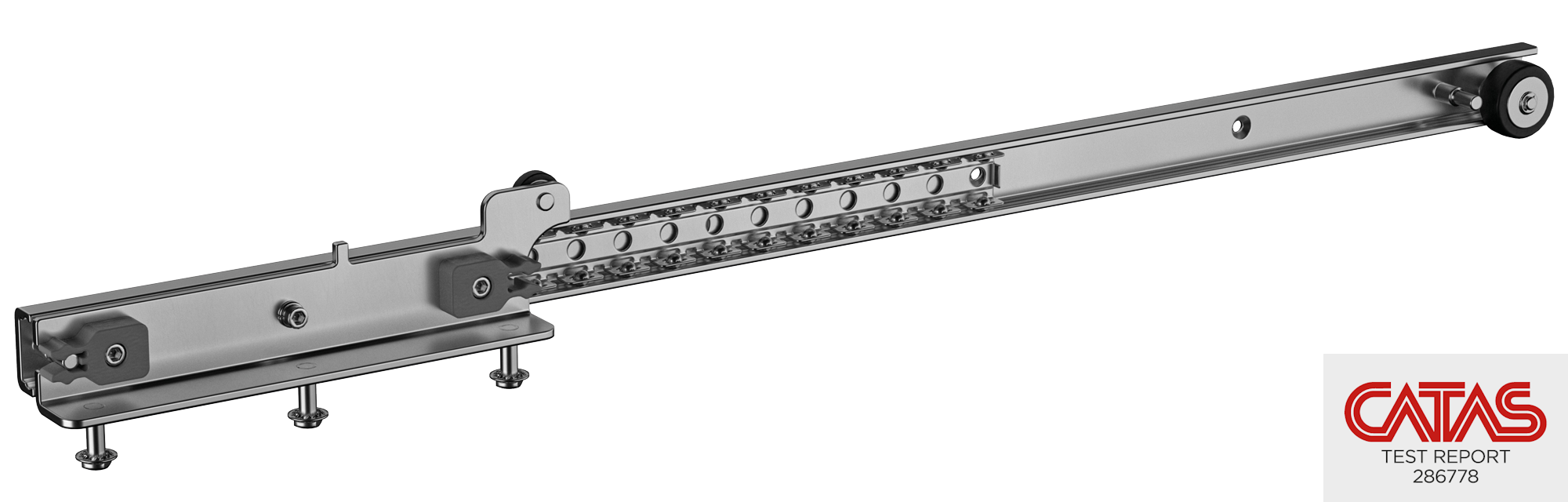

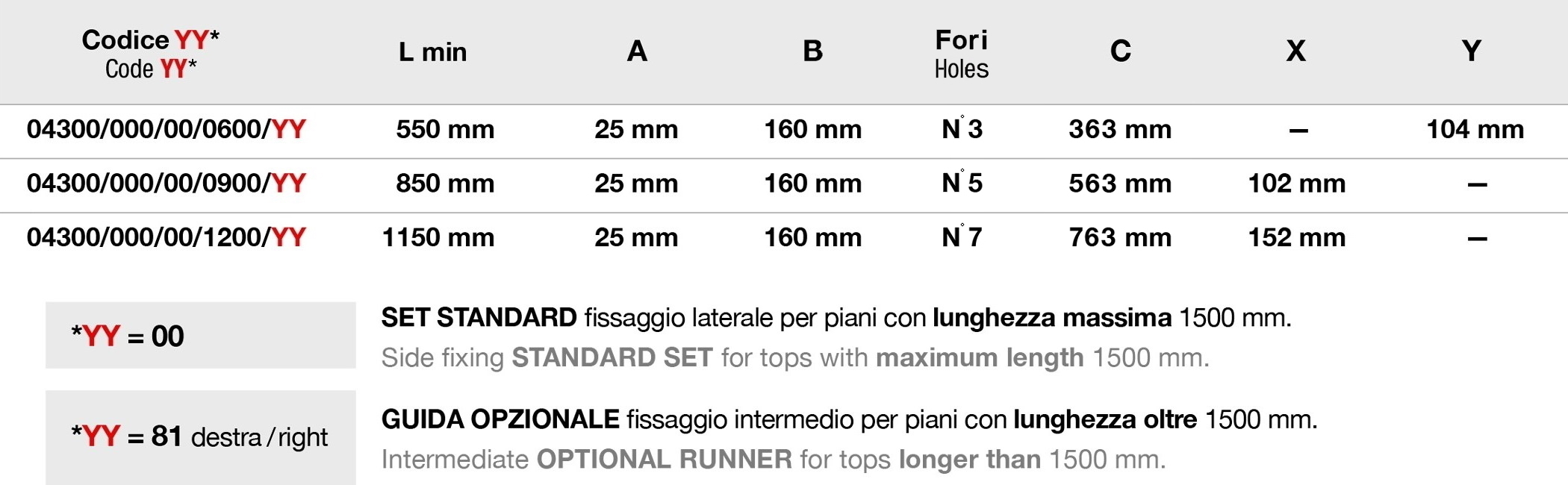

Surf 4300 is quick and simple to install and consists of a pair of runners with maximum loading capacity Kg 120 and maximum sliding top width mm 1500.
The possibility of adding one or more intermediate runners enables to increase the loading capacity and size limits.
Surf 4300 is available on demand in the soft closing version.

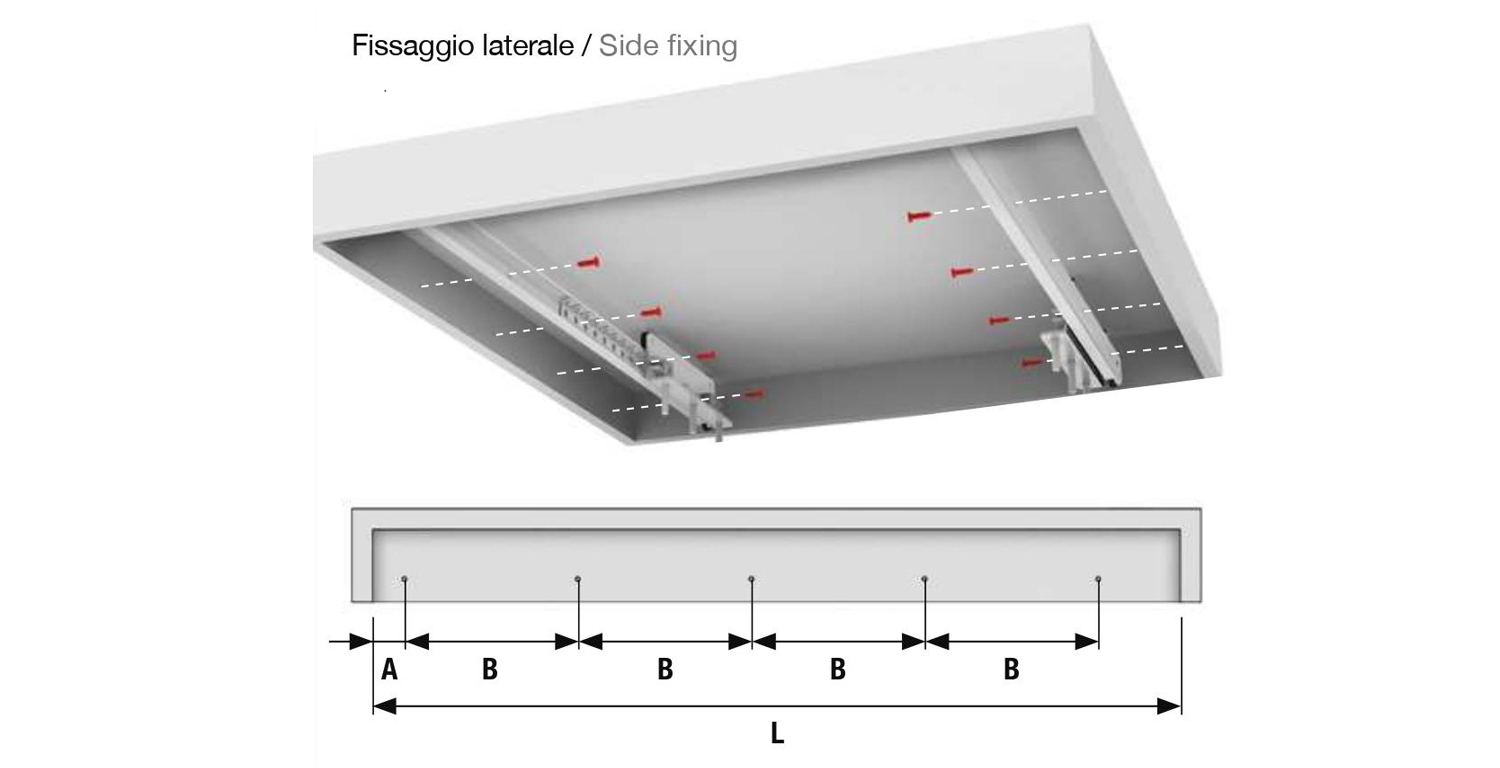

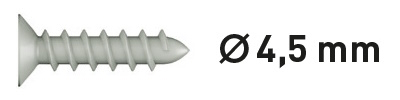

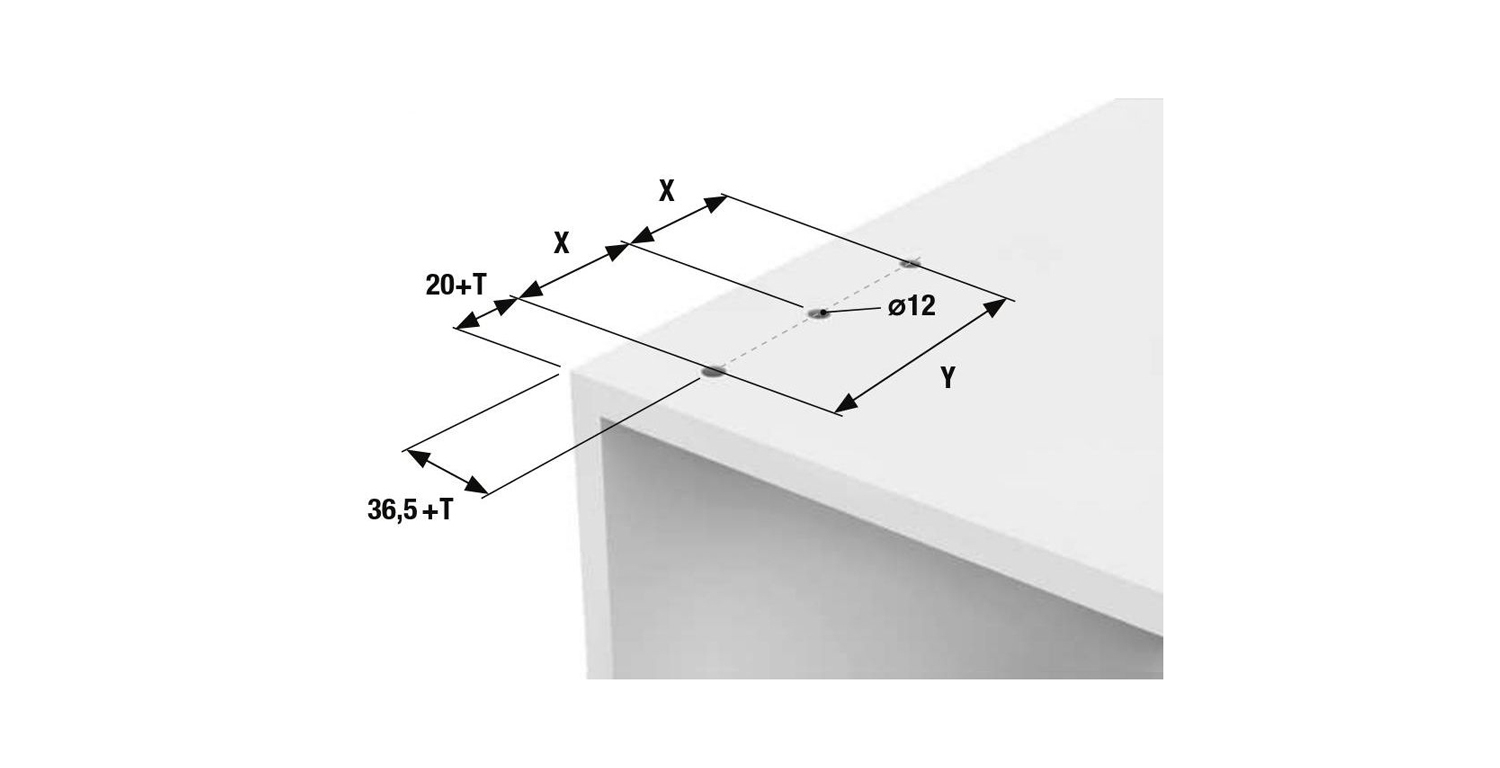

Fixing to the bearing base and to the sides of the sliding top.

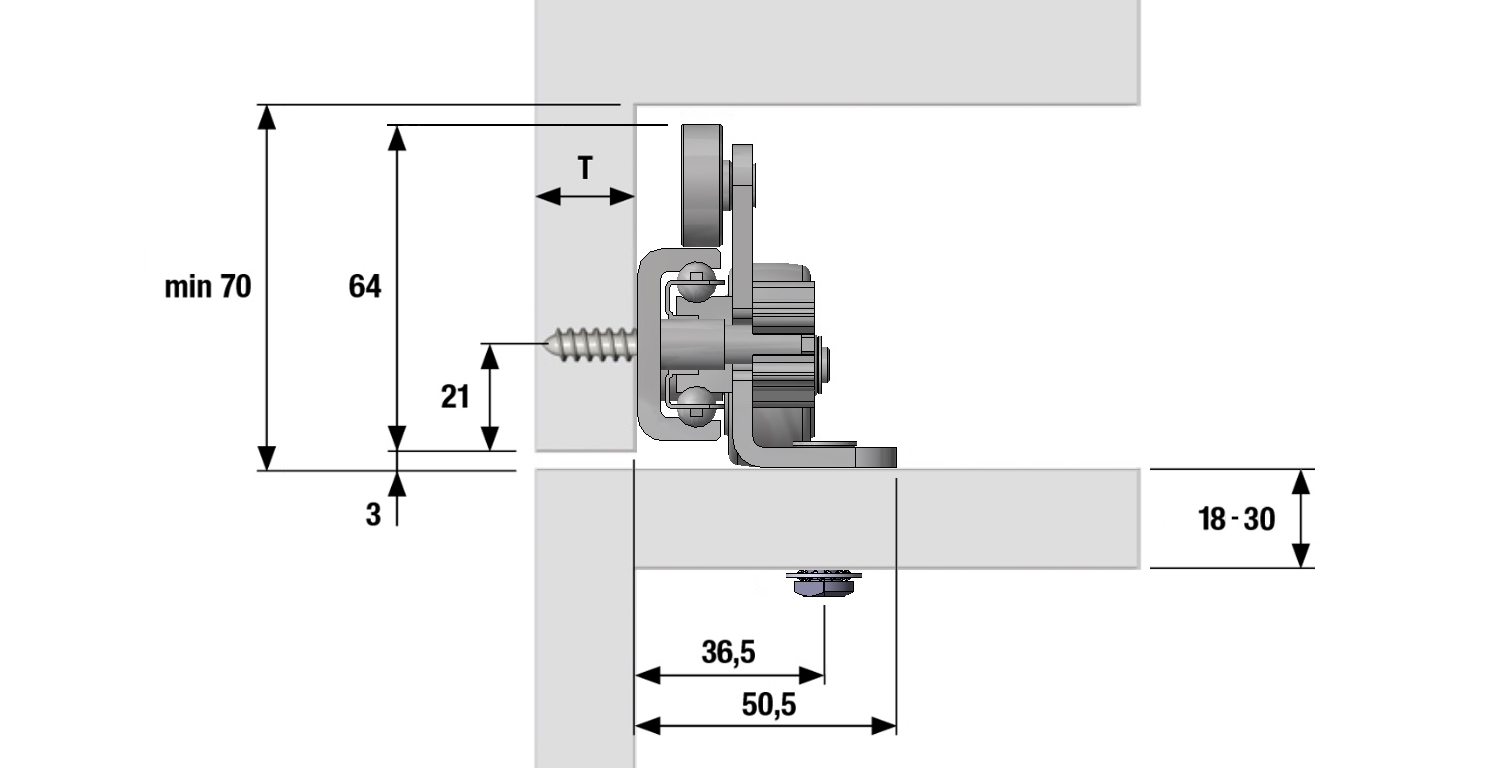

Internal required height between the bearing base and the sliding top minimum mm 70.

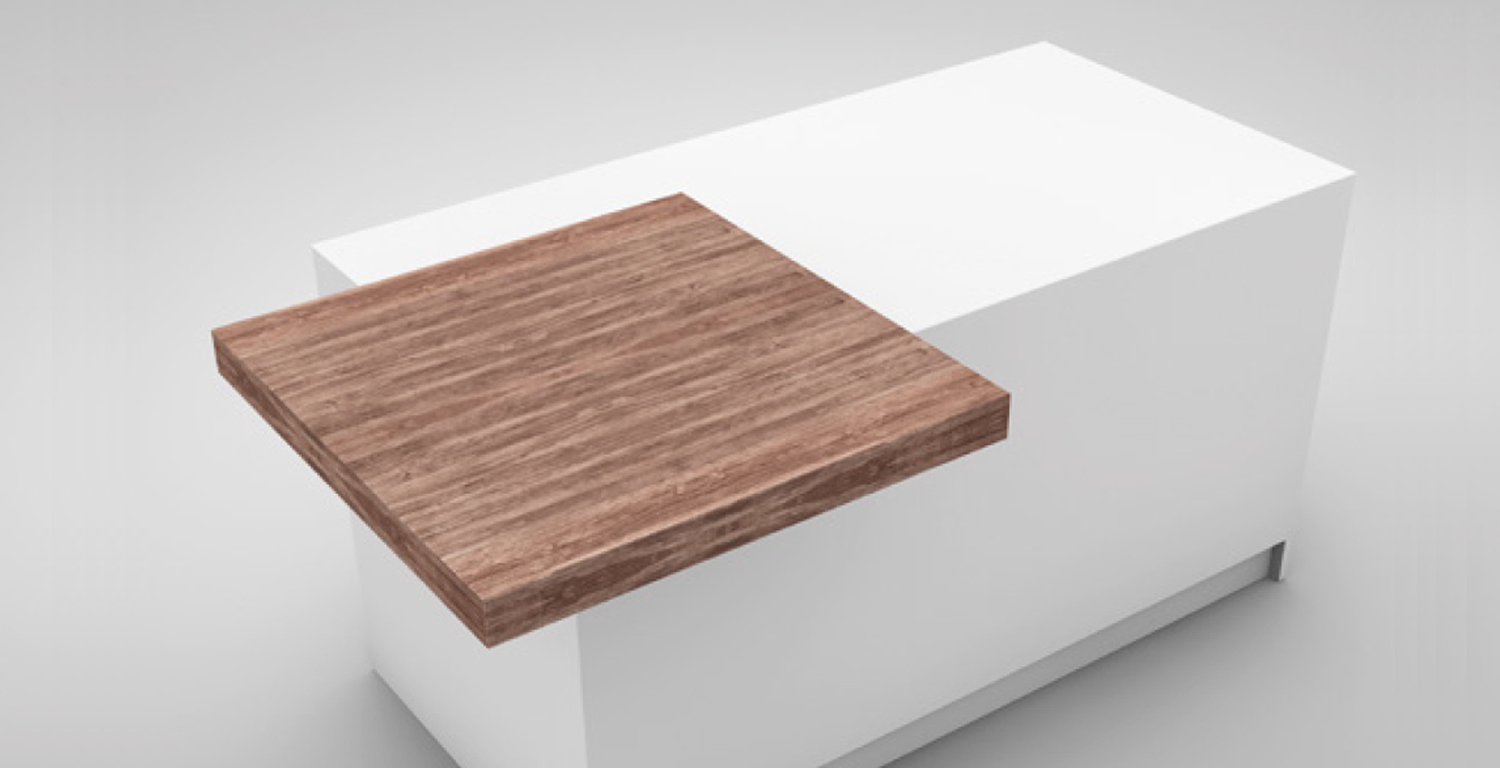

In case of assembly for diagonal sliding it is required the installation of side supports for the runners not provided by Omge.
single extension
hold-out feature
hold-in feature
horizontal adjustment
