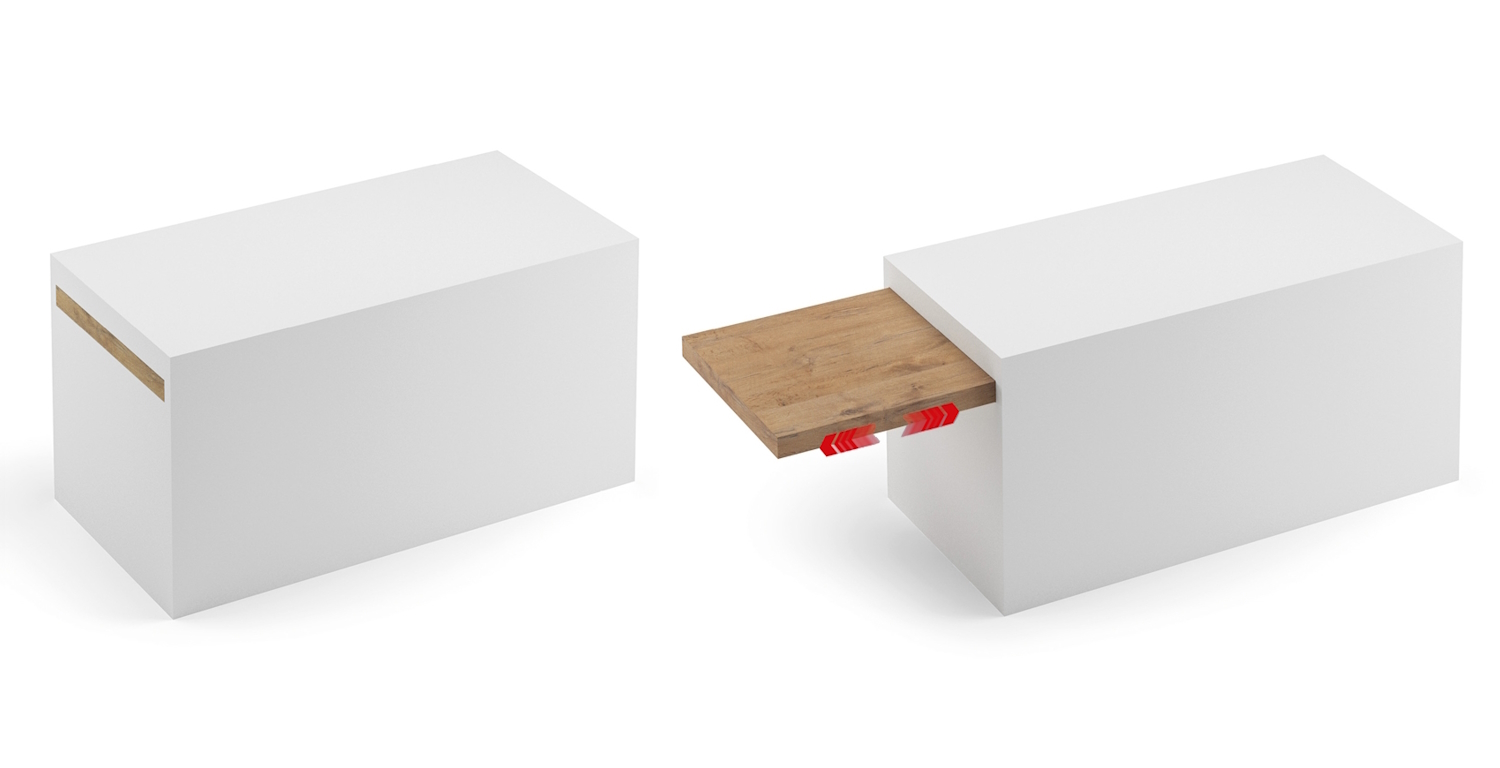

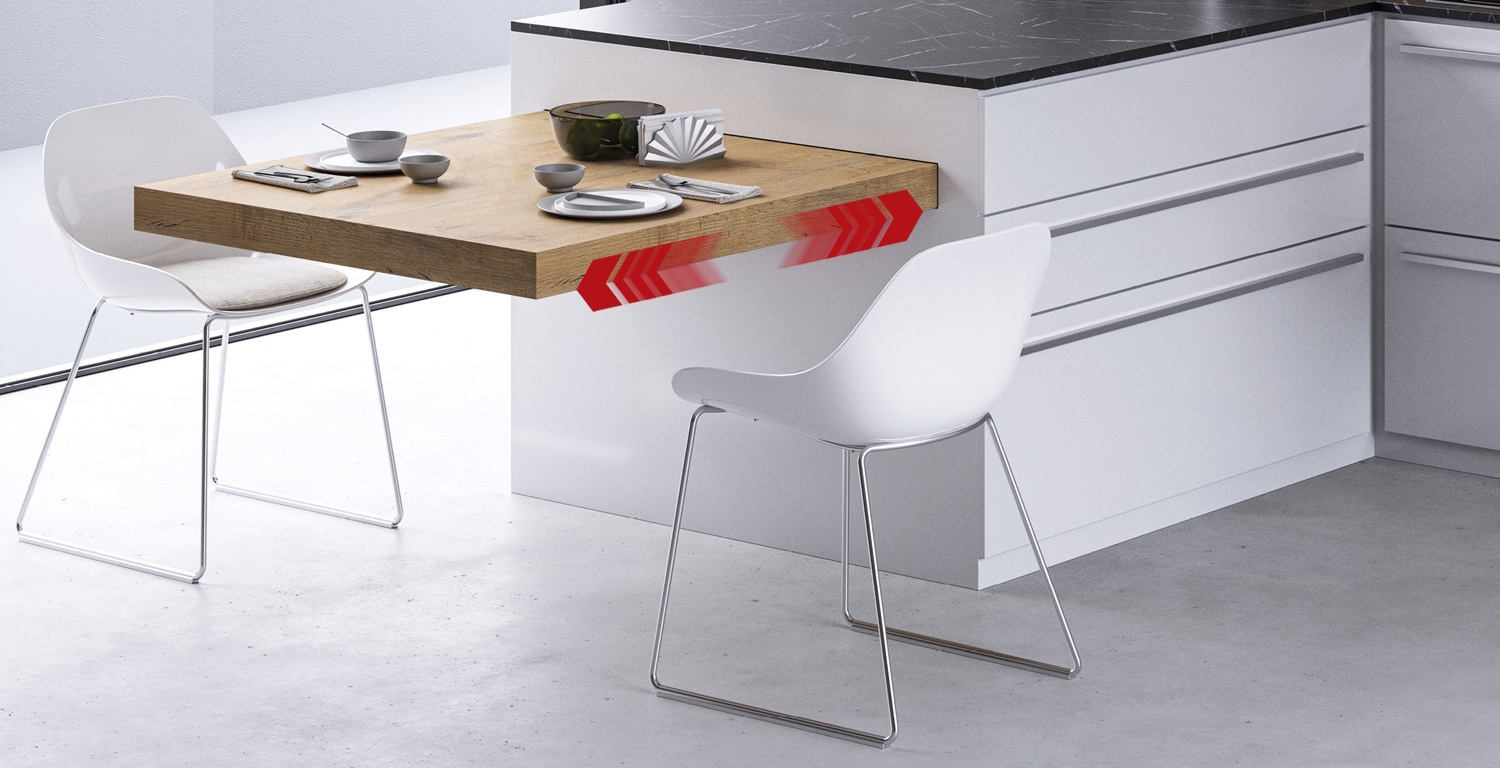

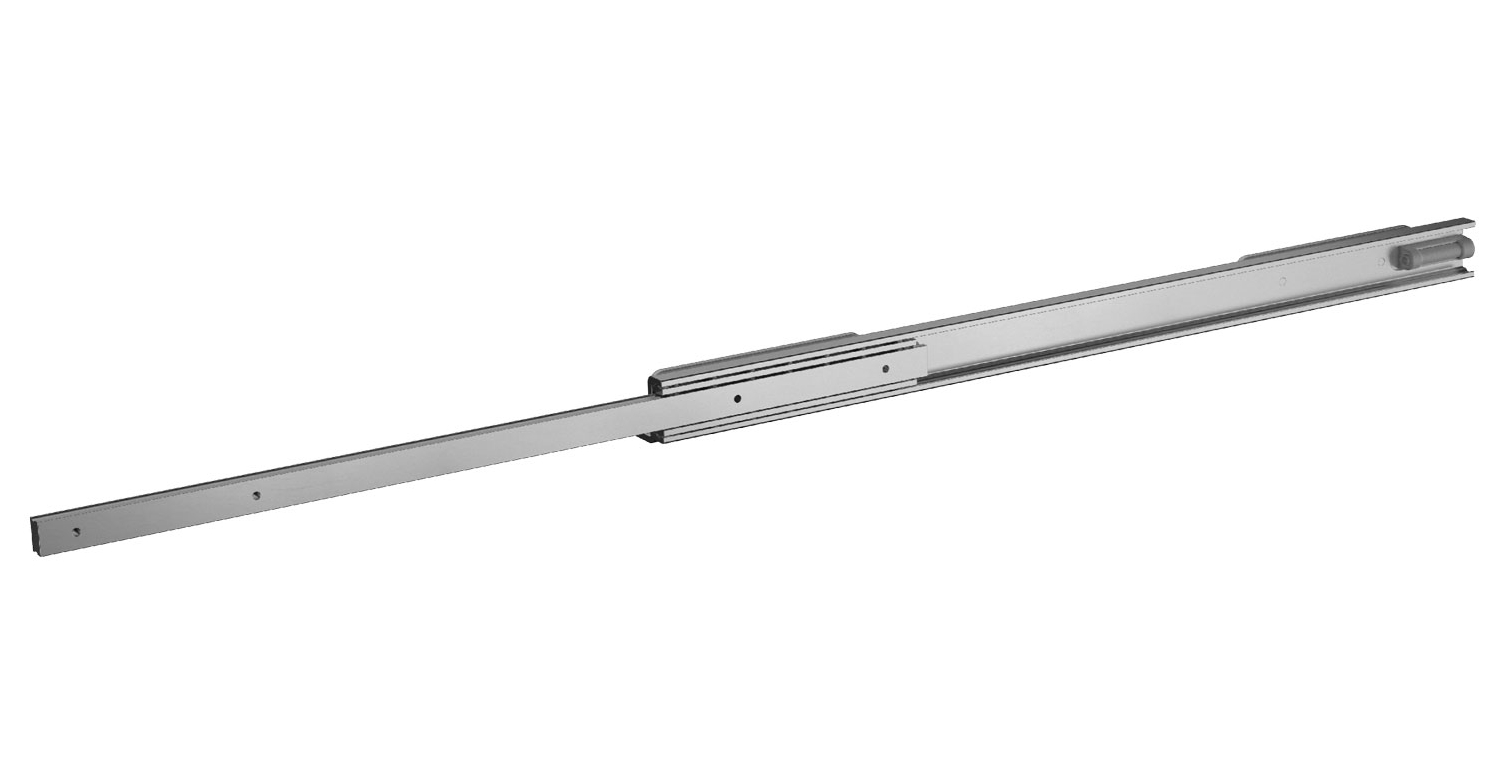

Aliante 9265 Matik is a sliding mechanism made of high load capacity cold drawn steel to allow a table or a worktop to be pulled-out from the side part or from the front of a cabinet, and an engine that allows the automation of the system.

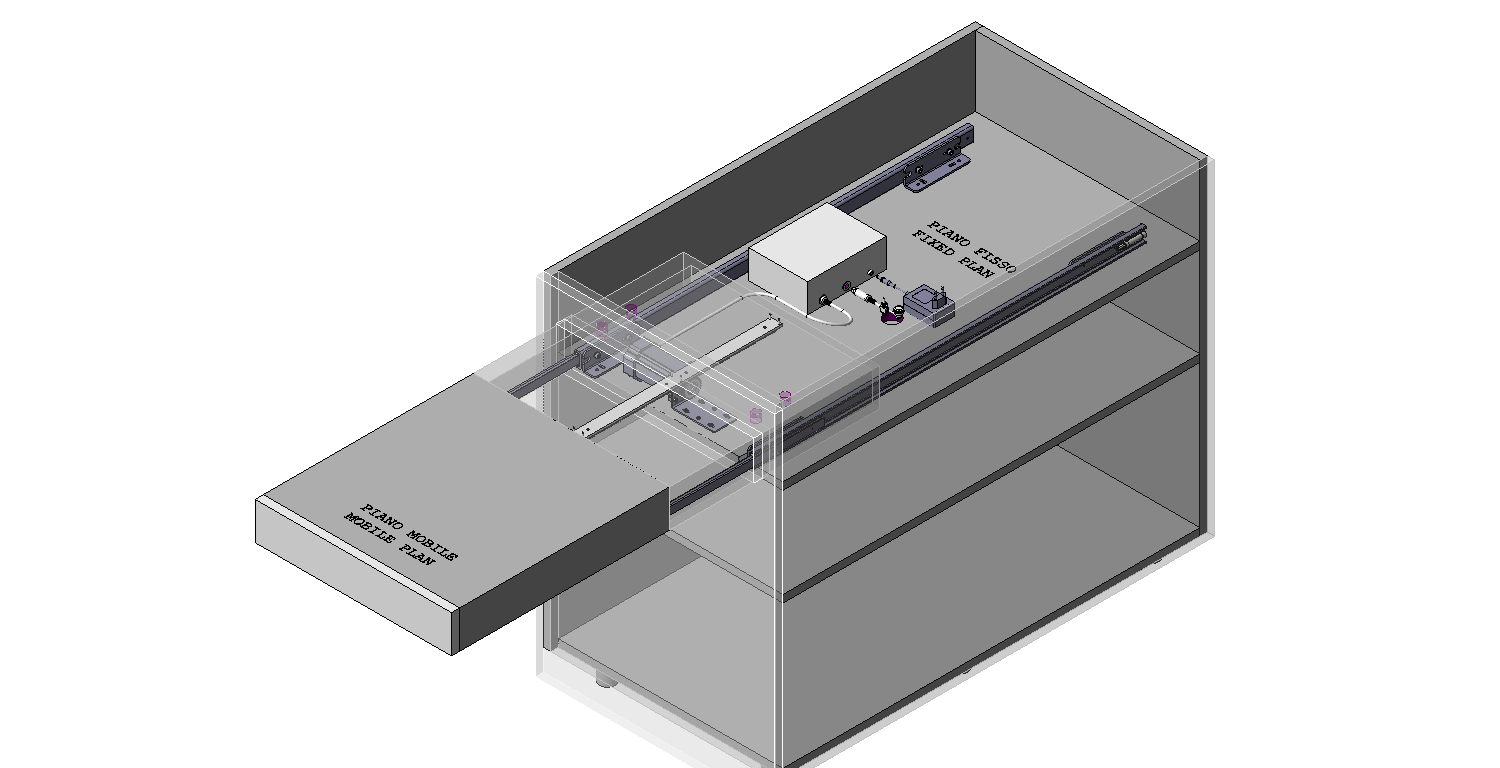

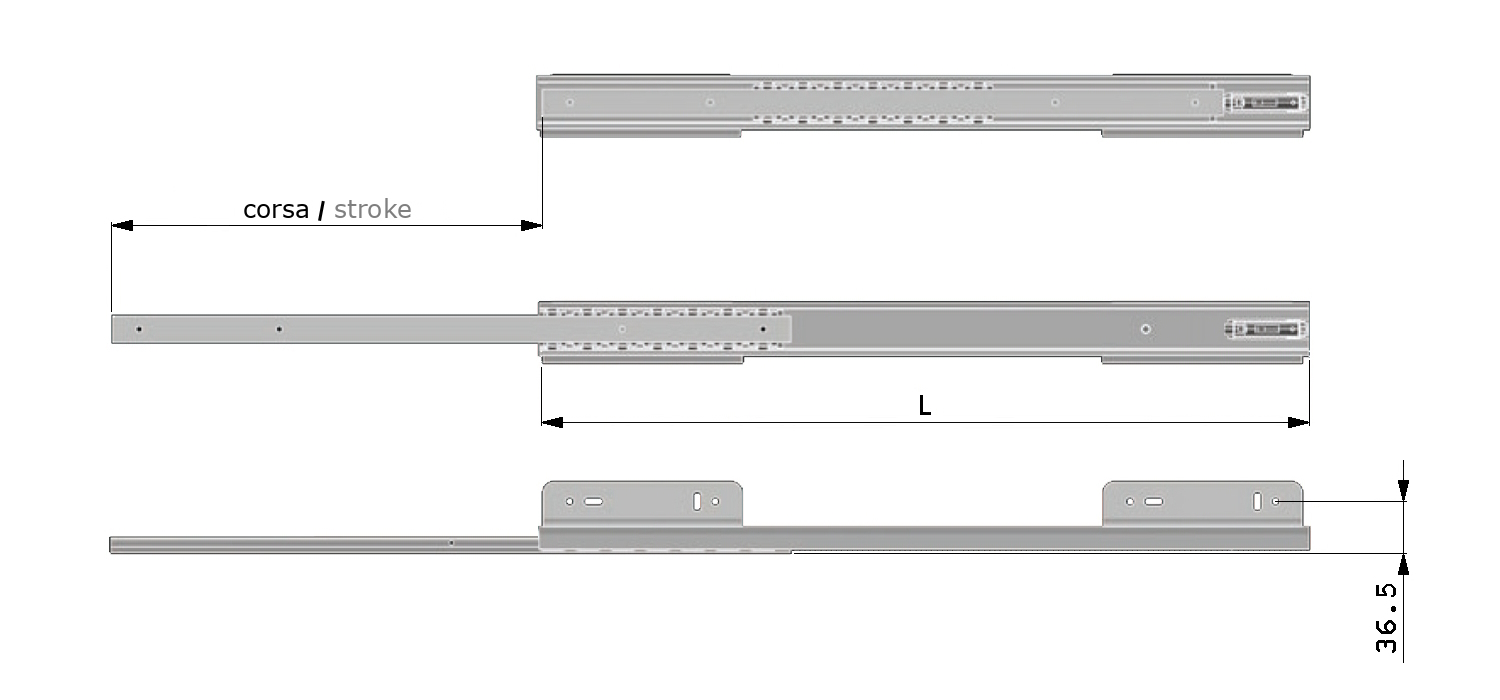

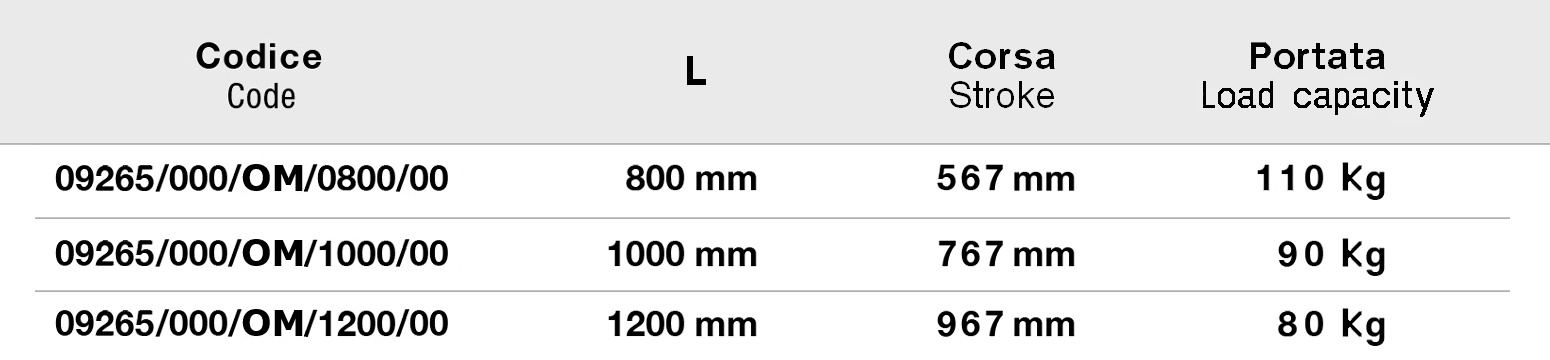

The Aliante 9265 Matik system shall be placed internally to the cabinet and it is completely hidden even when the table is pulled-out at maximum extension, granting a loading capacity between kg 80 and kg 110 in relation to the installed length of the sliding runners.

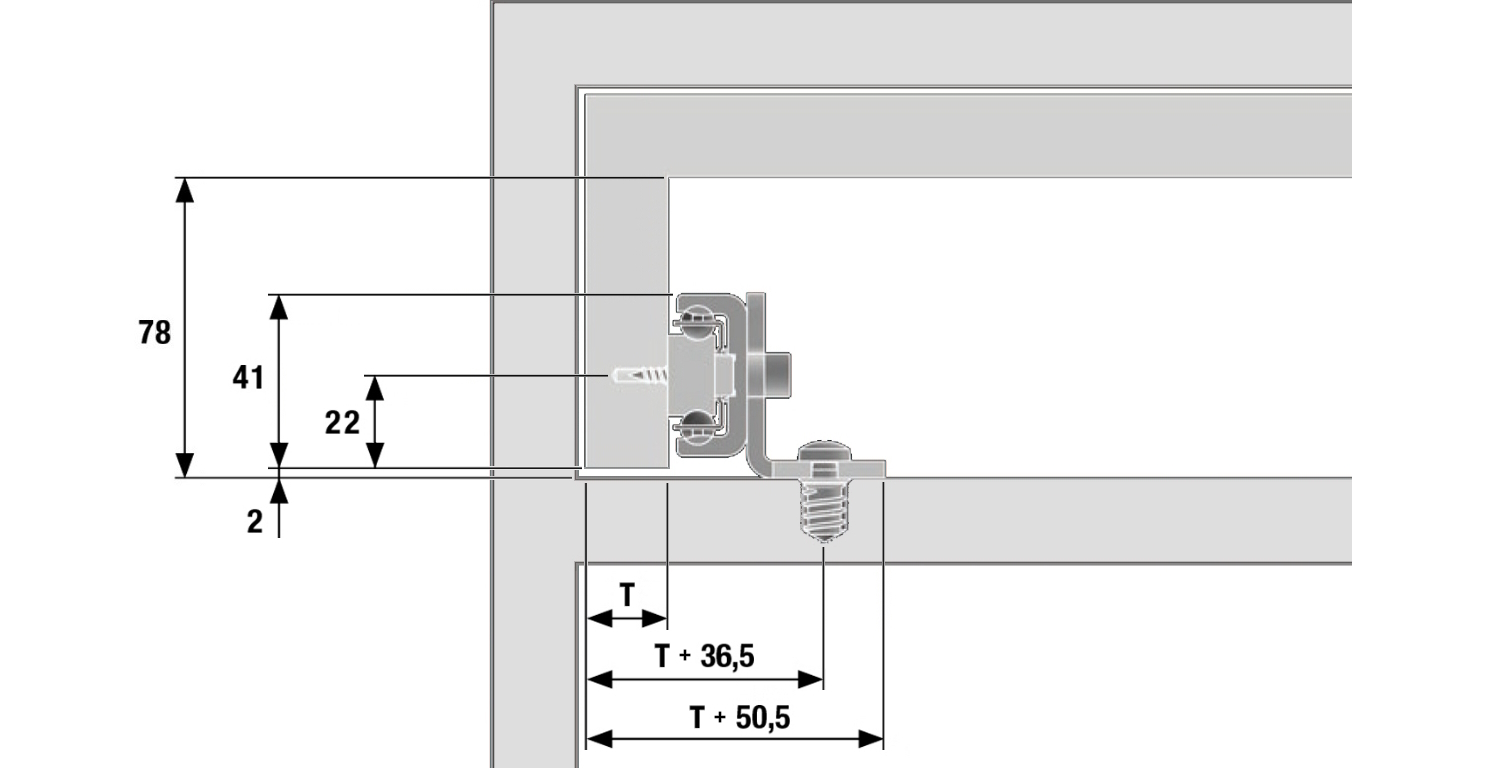

Fixed internal height of mm 78 between the bearing base and the sliding top.
The production flexibility that characterizes the company allows the customization of the Aliante Matik system, in terms of length, to meet the different demands that the contemporary design requires.
horizontal adjustment ± 4 MM.
automation
secure block
