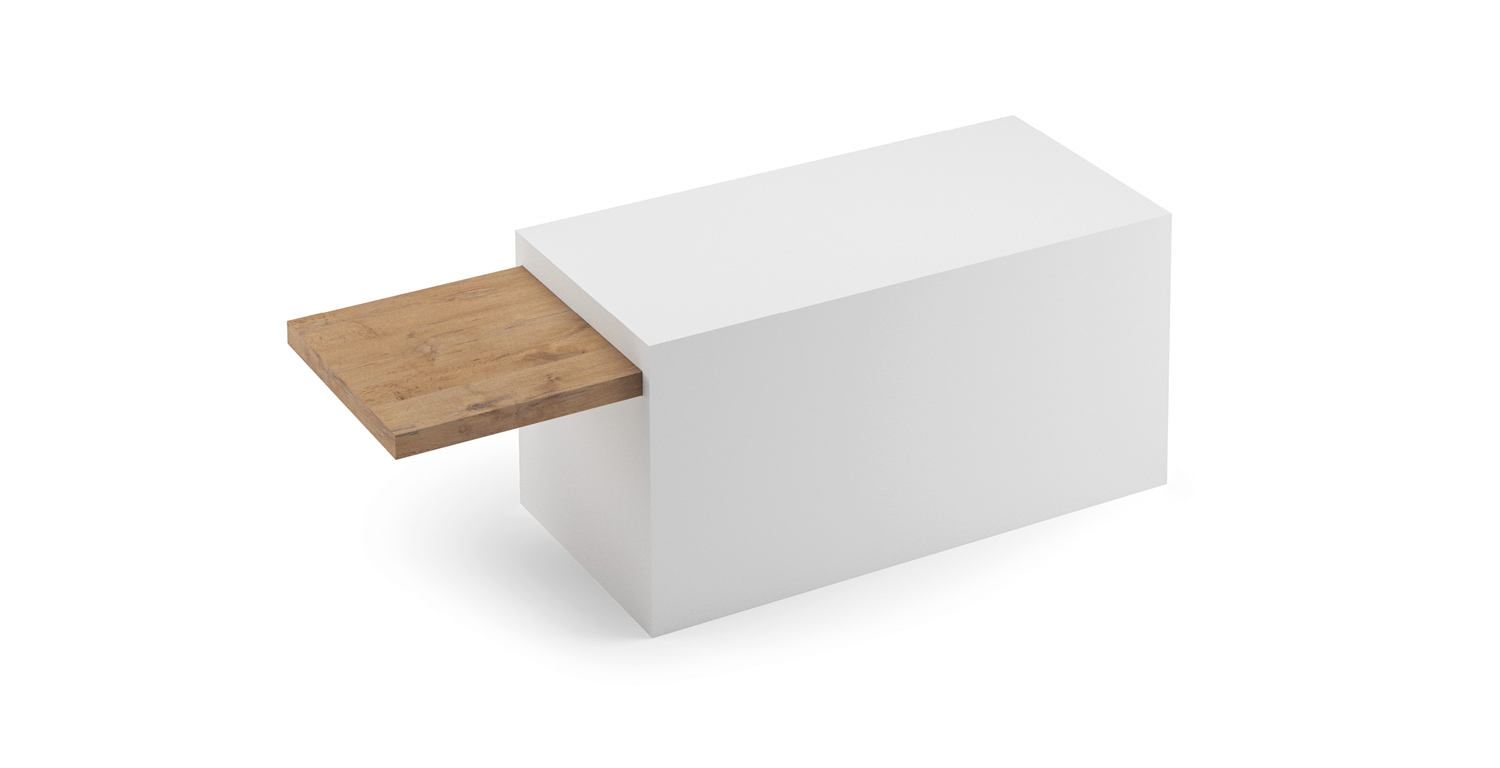

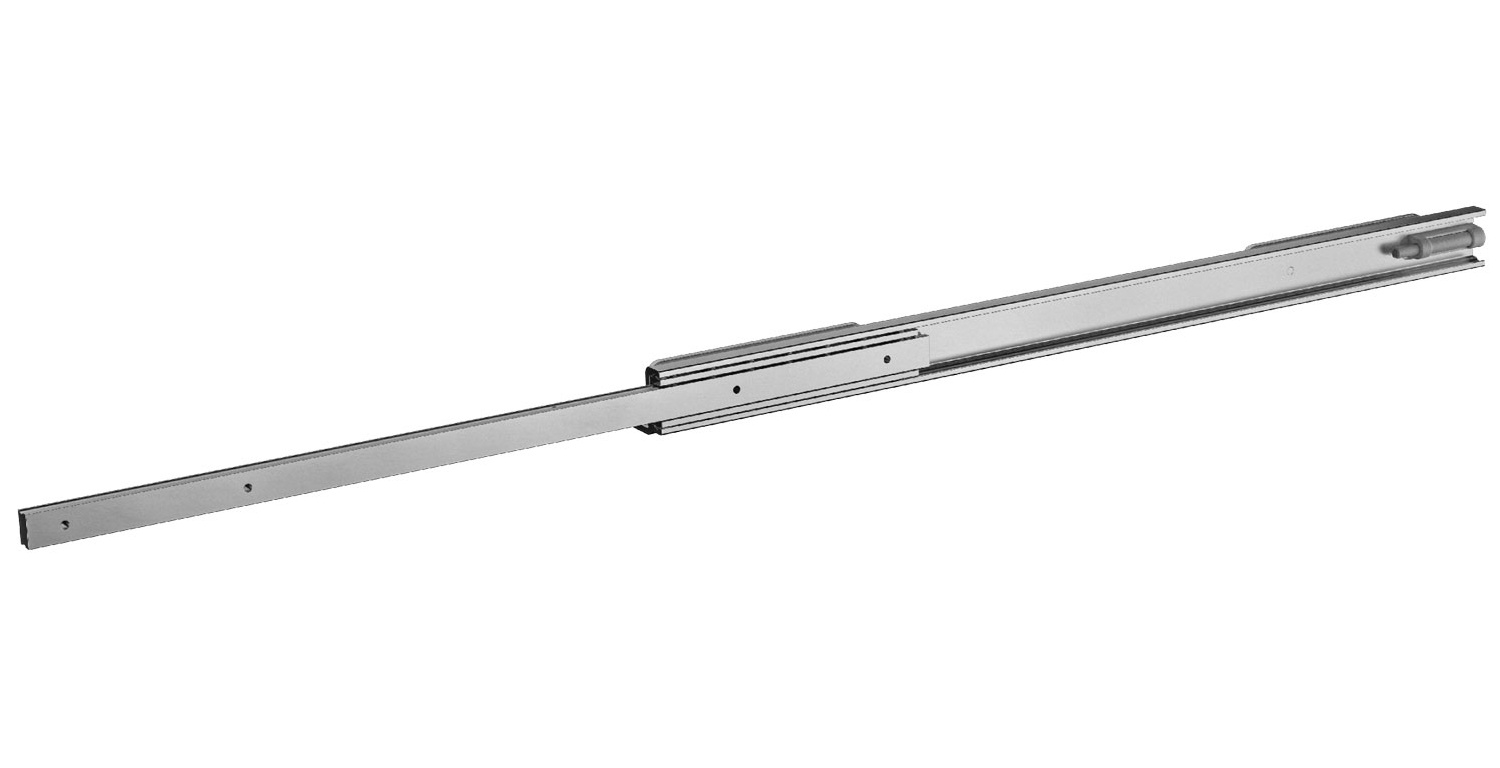

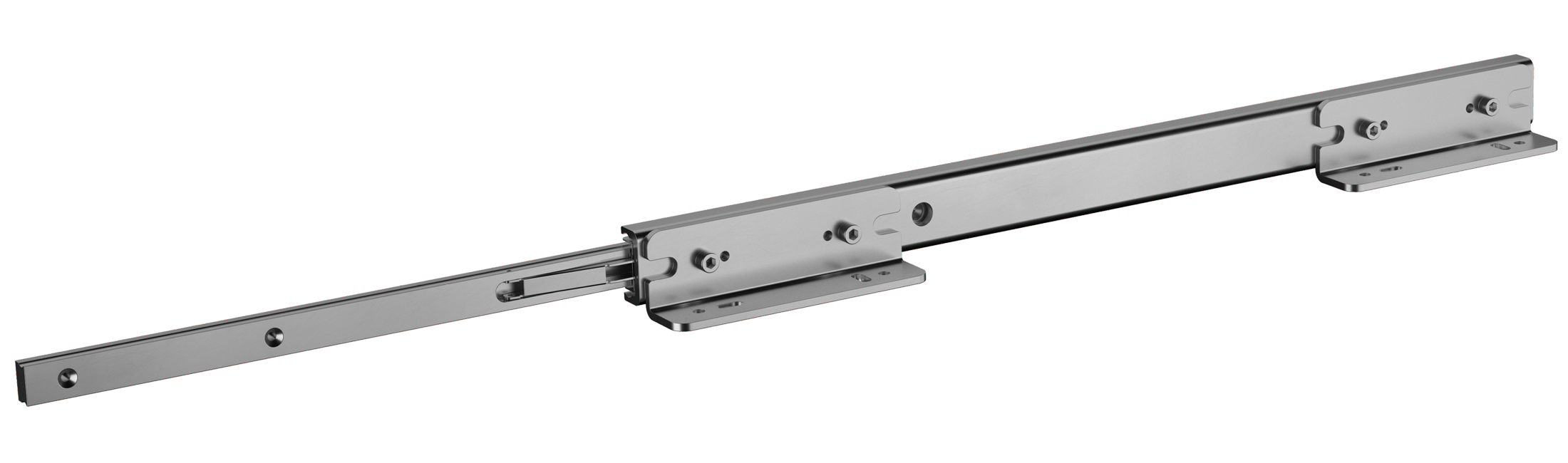

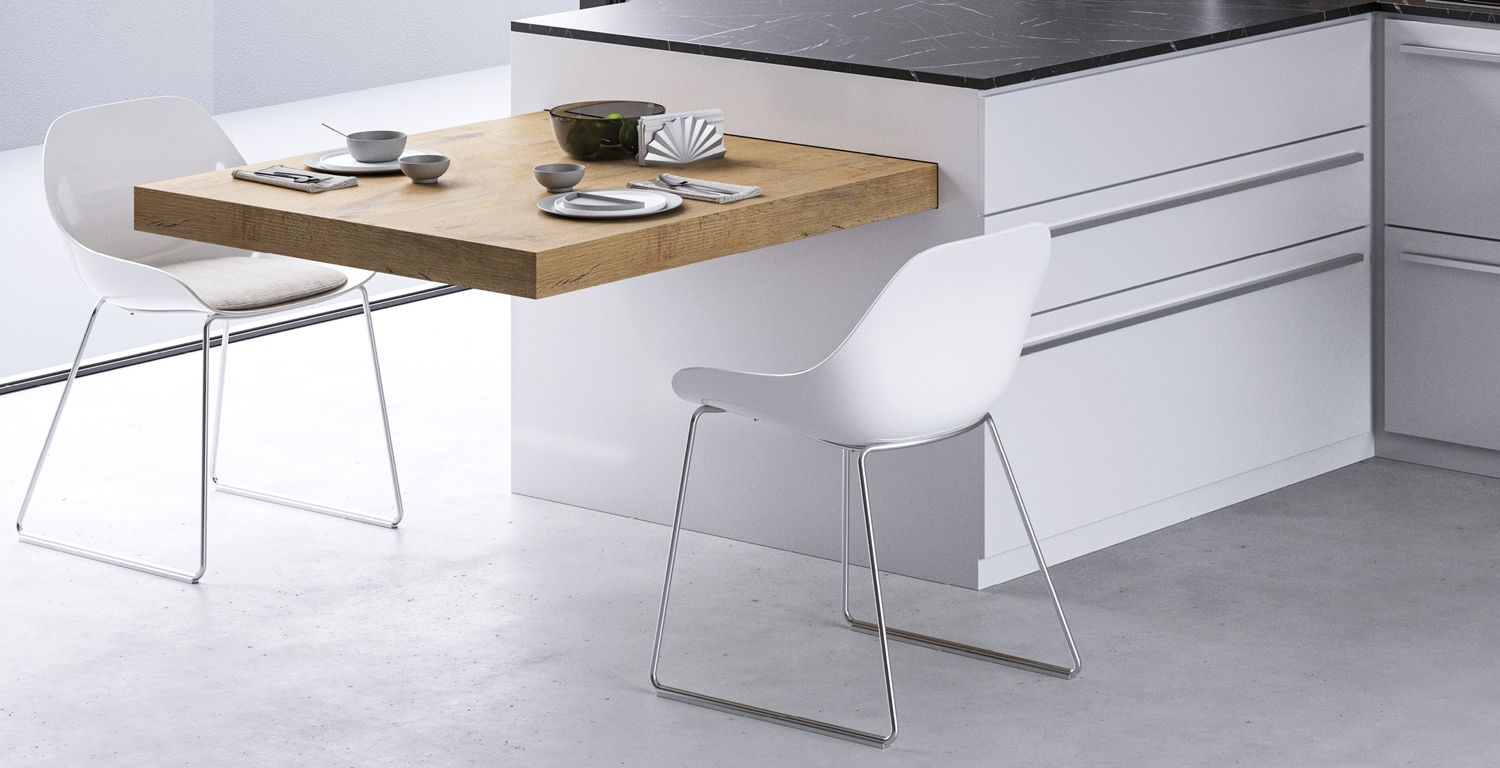

Aliante 9265 is a sliding mechanism made of high load capacity cold drawn steel to allow a table or a worktop to be pulled-out from the side part or from the front of a cabinet.

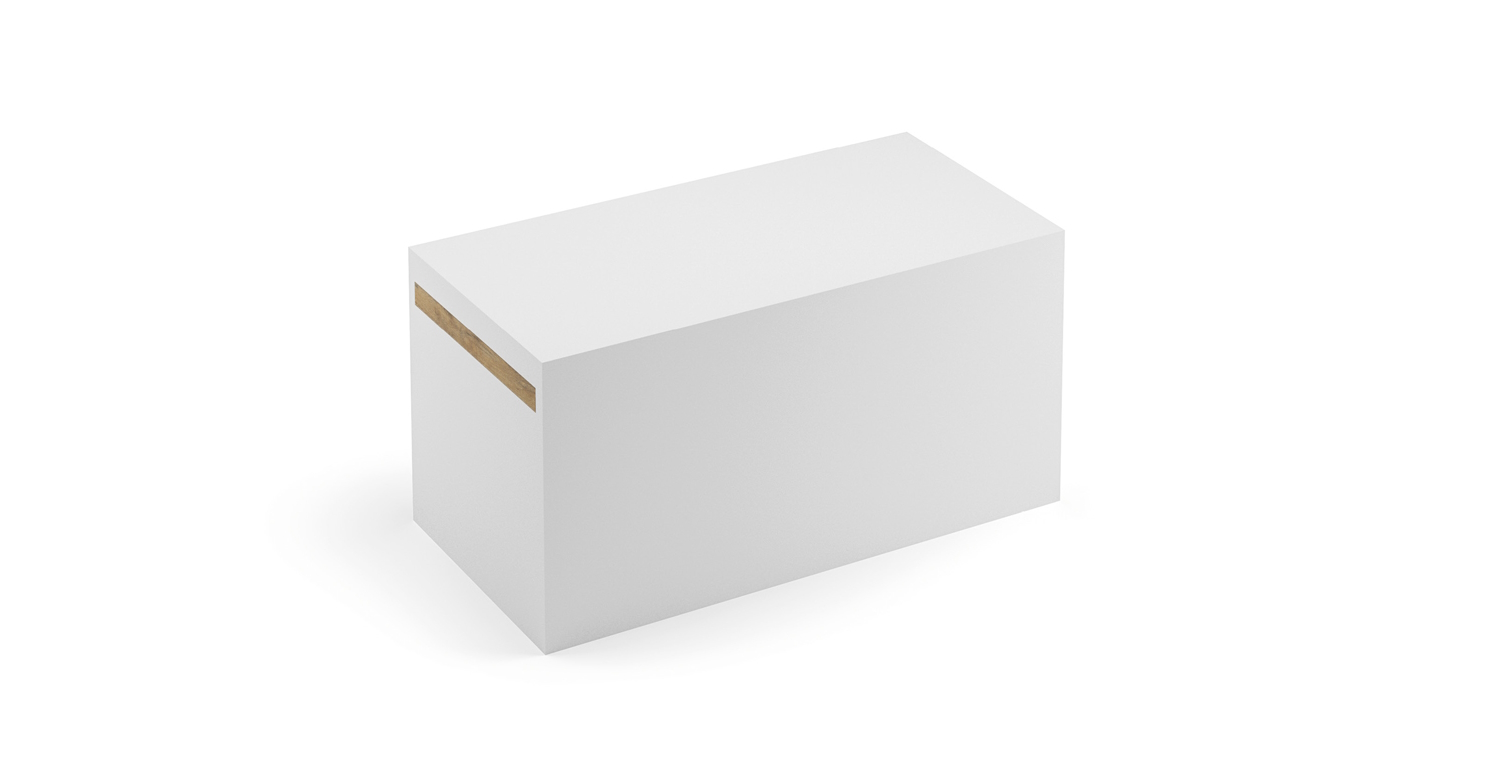

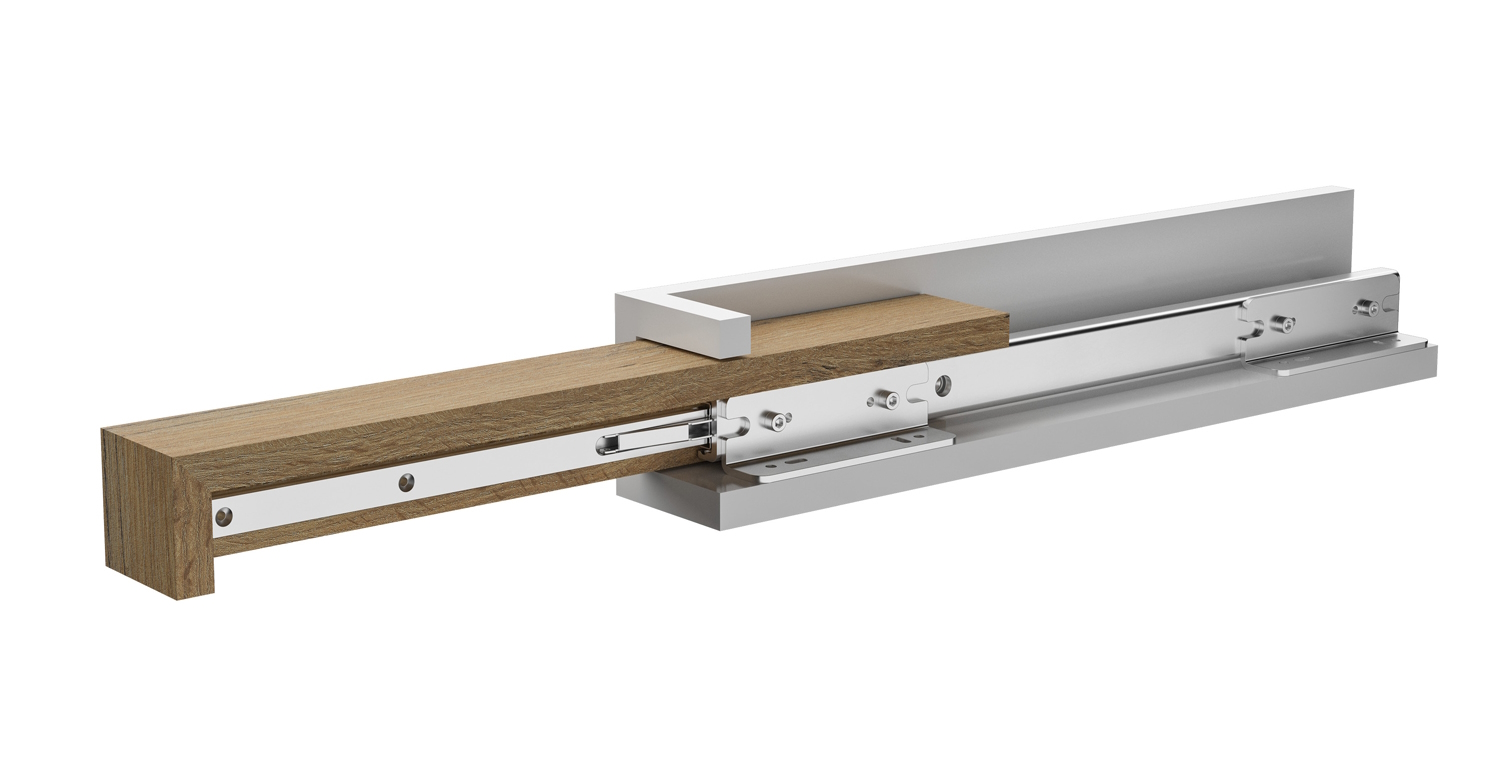

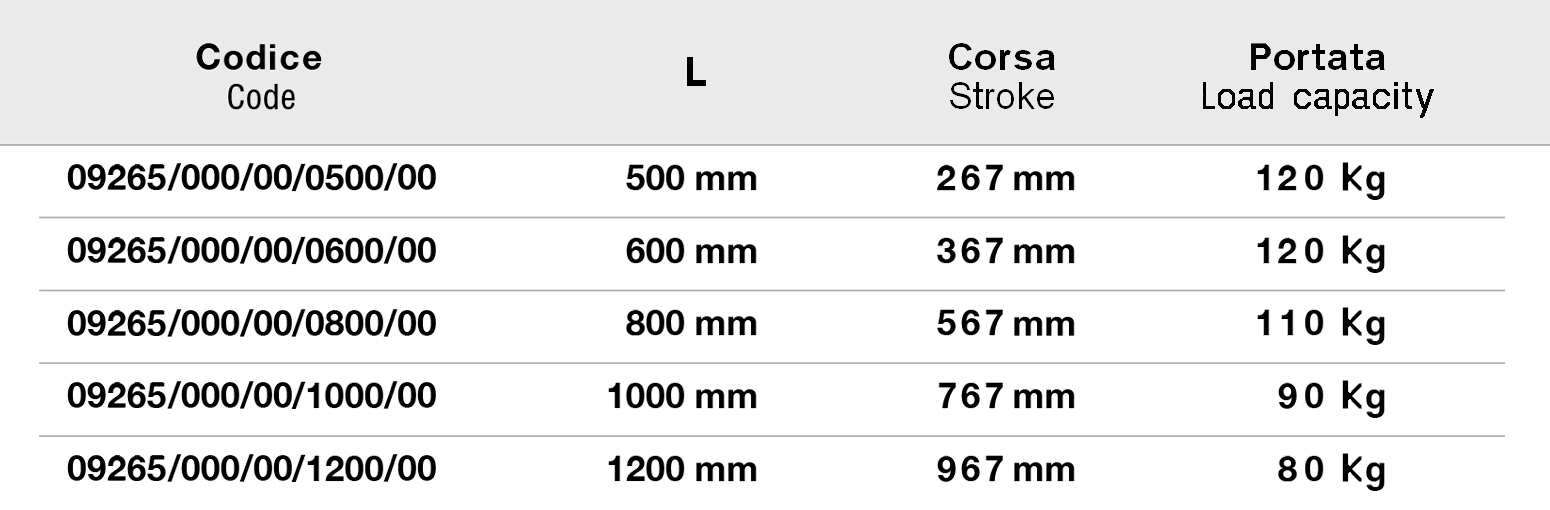

The Aliante 9265 system shall be placed internally to the cabinet and it is completely hidden even when the table is pulled-out at maximum extension, granting a loading capacity between kg 80 and kg 120 in relation to the installed length of the sliding runners.
The push to open built-in mechanism, the magnetic hold-in feature and the safety lock of the table when is completely extended contribute to give functional and aesthetic value to the product that finds its natural application in the home environment or in the workplace.
The production flexibility that characterizes the company allows the customization of the Aliante system, in terms of length, to meet the different demands that the contemporary design requires.
push to open

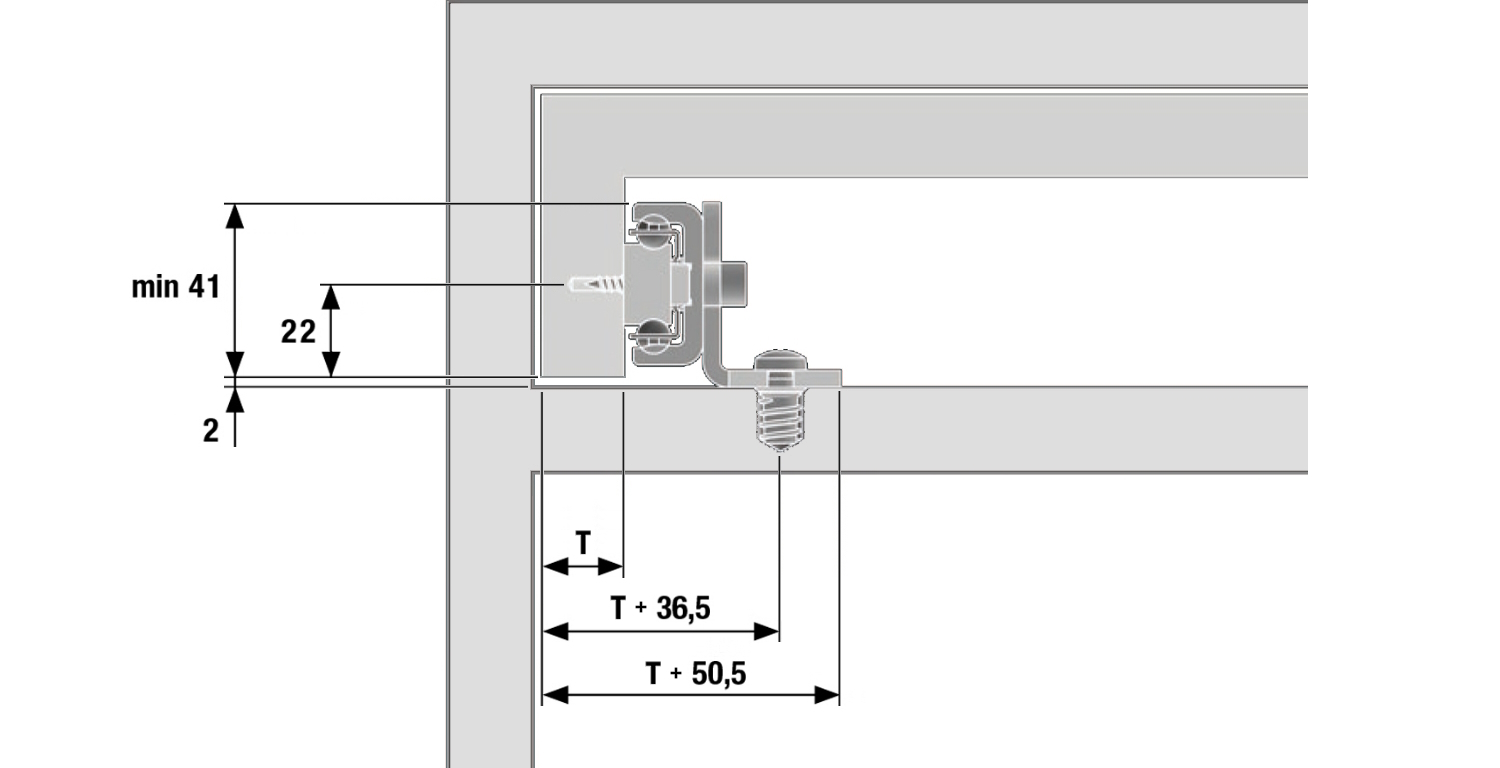

horizontal adjustment ± 4 MM.
secure block
