Drawer runners, sliding systems for furniture and furniture components

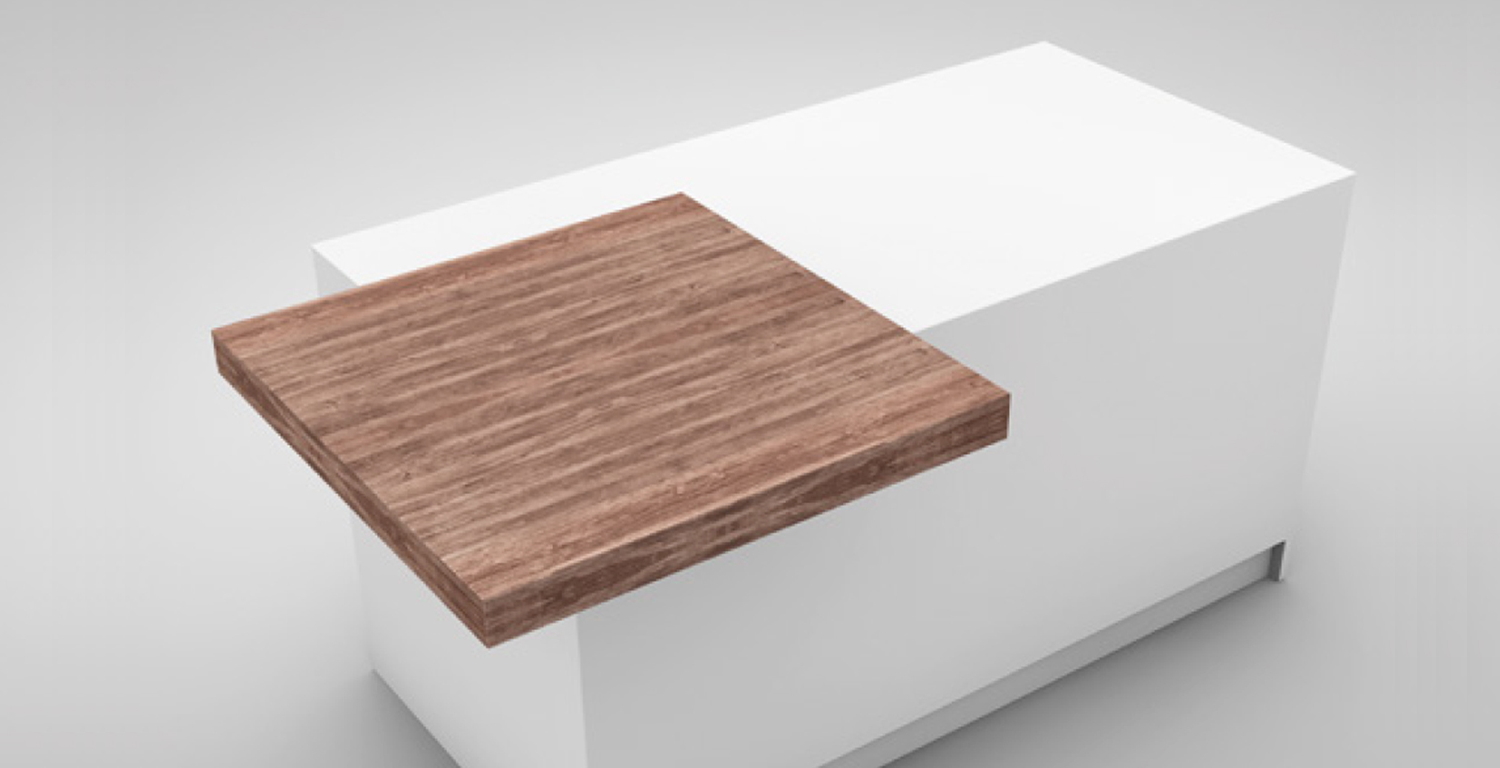

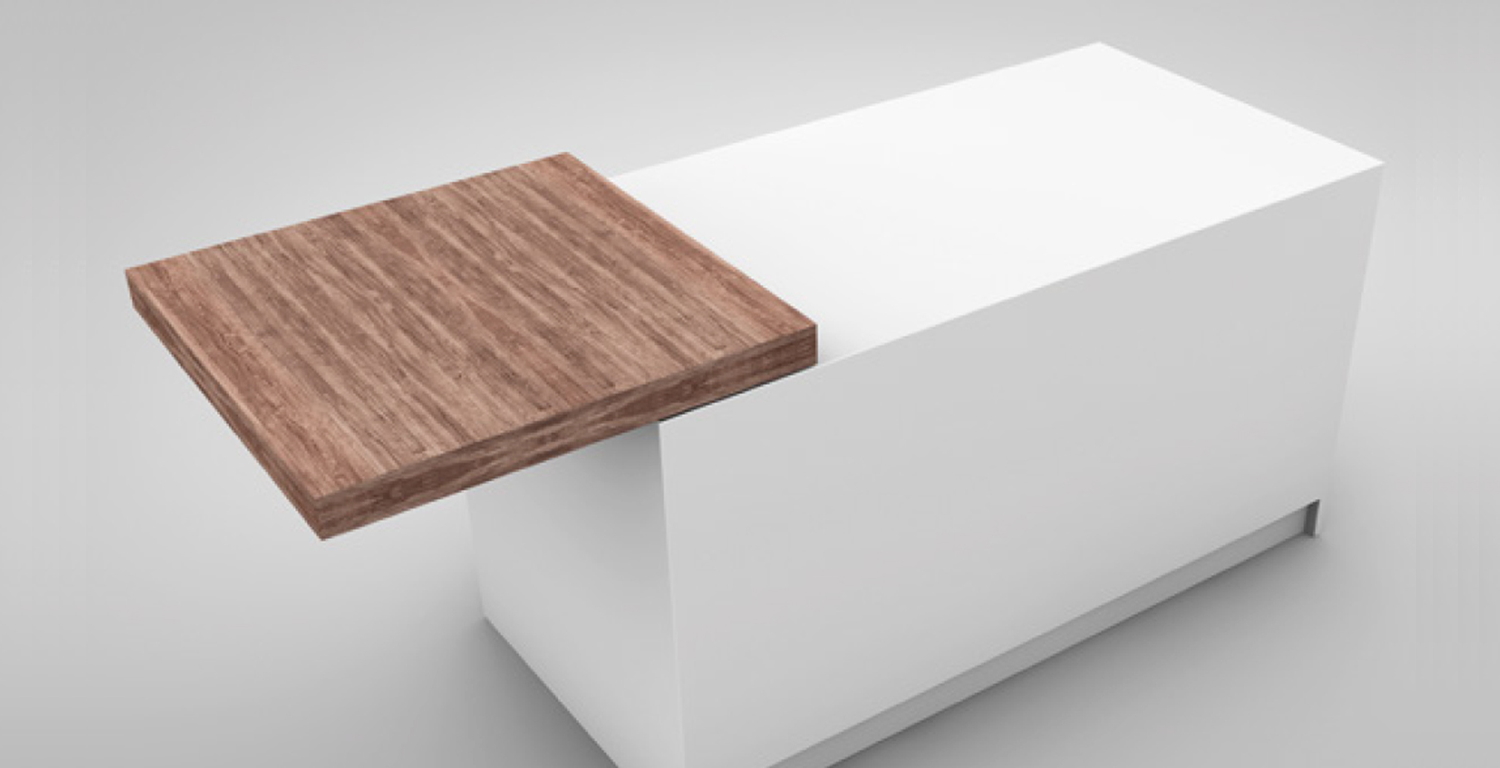

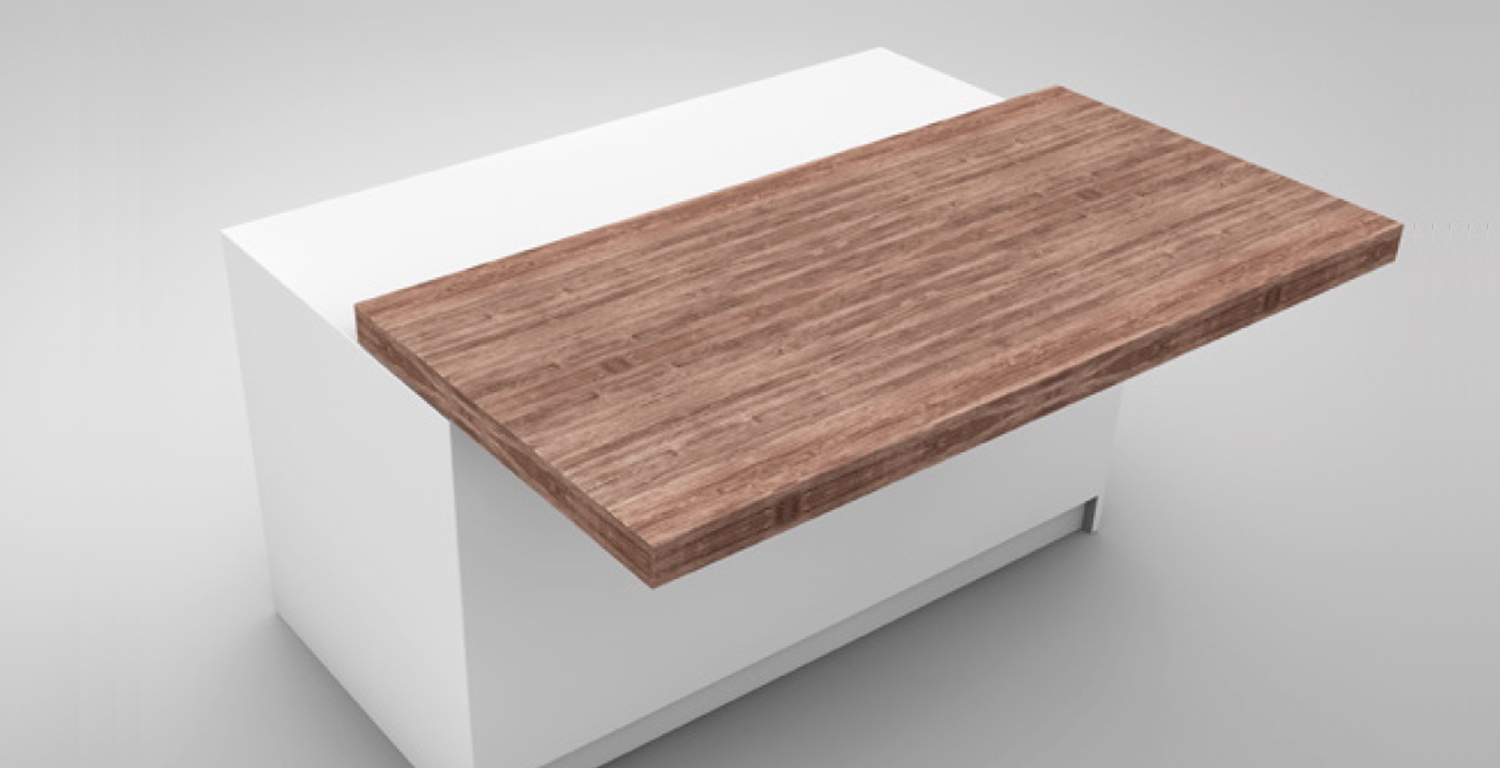

Runners made of cold drawn steel designed to allow the longitudinal, lateral or diagonal sliding of surfaces and kitchen tops.
The mechanism, invisible once assembled, is equipped with hold-in and hold-out device.

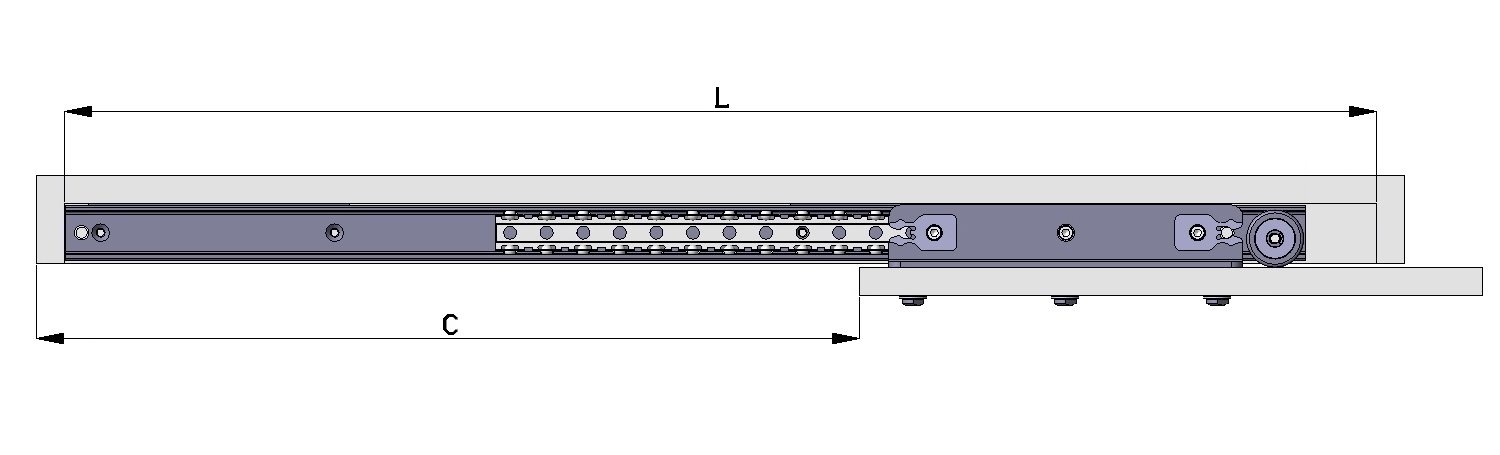

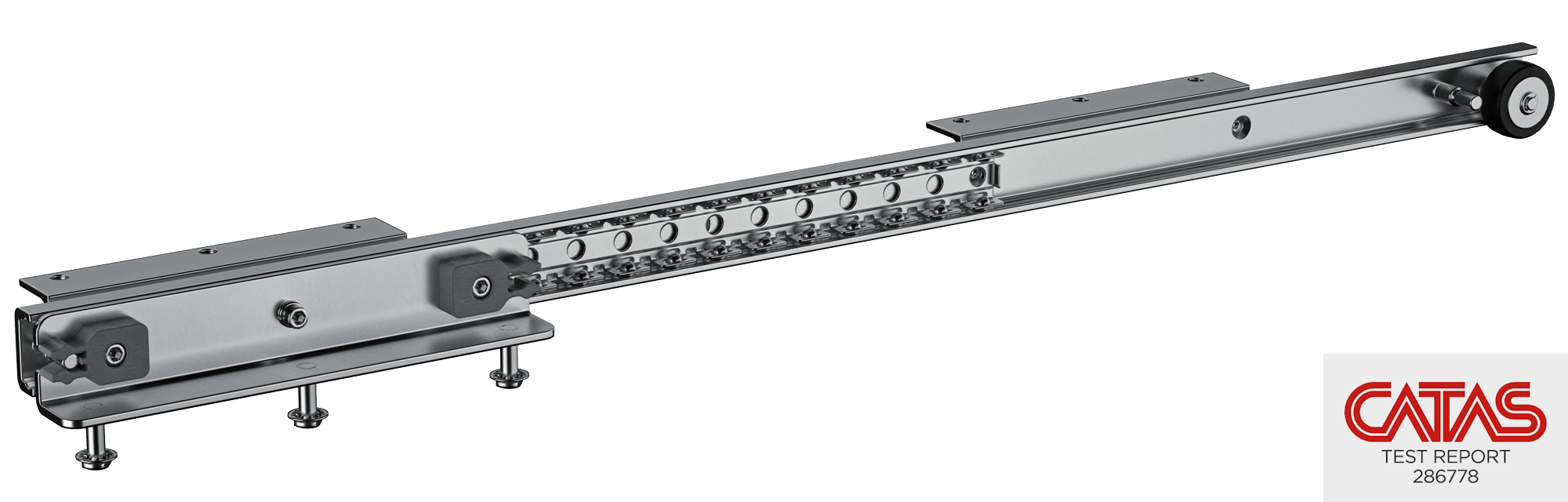

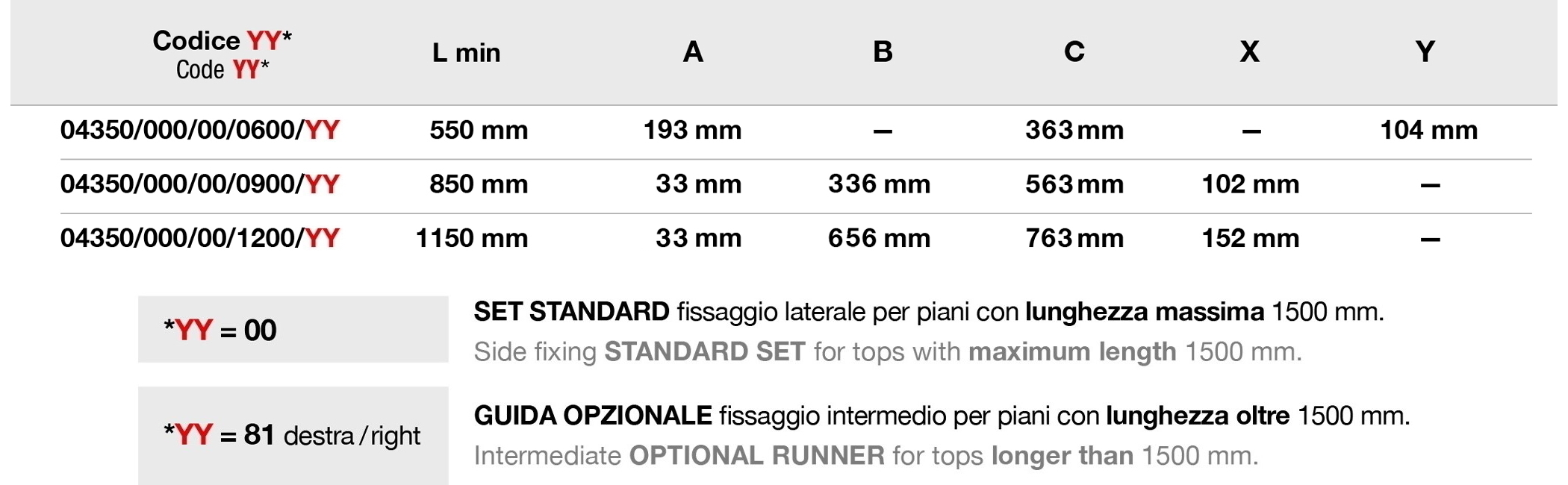

Surf 4350 is quick and simple to install and consists of a pair of runners with maximum loading capacity Kg 120 and maximum sliding top width mm 1500.
The possibility of adding one or more intermediate runners enables to increase the loading capacity and size limits.
Soft closing option not available.

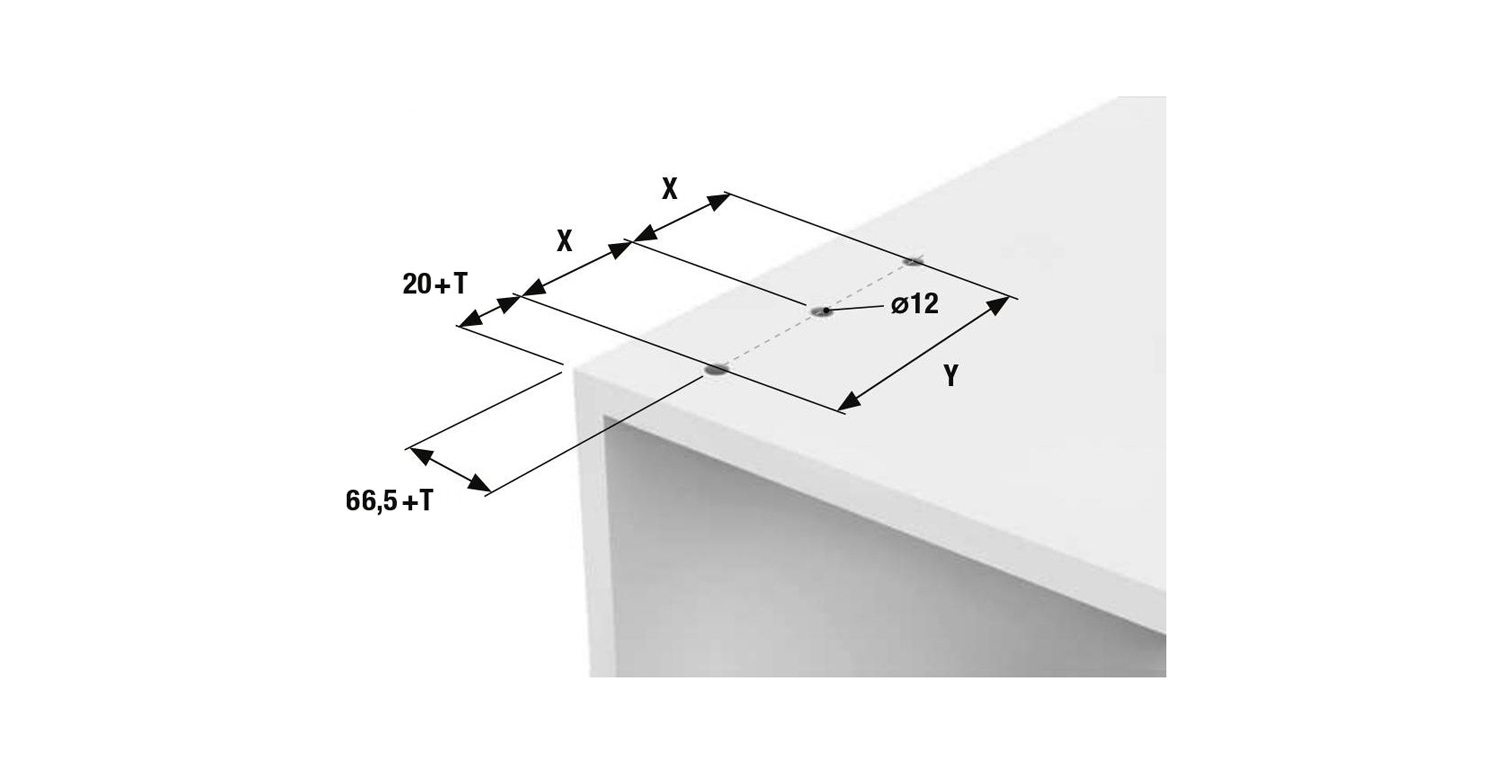

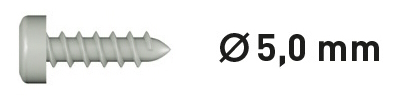

Fixing to the bearing base and under the sliding top.

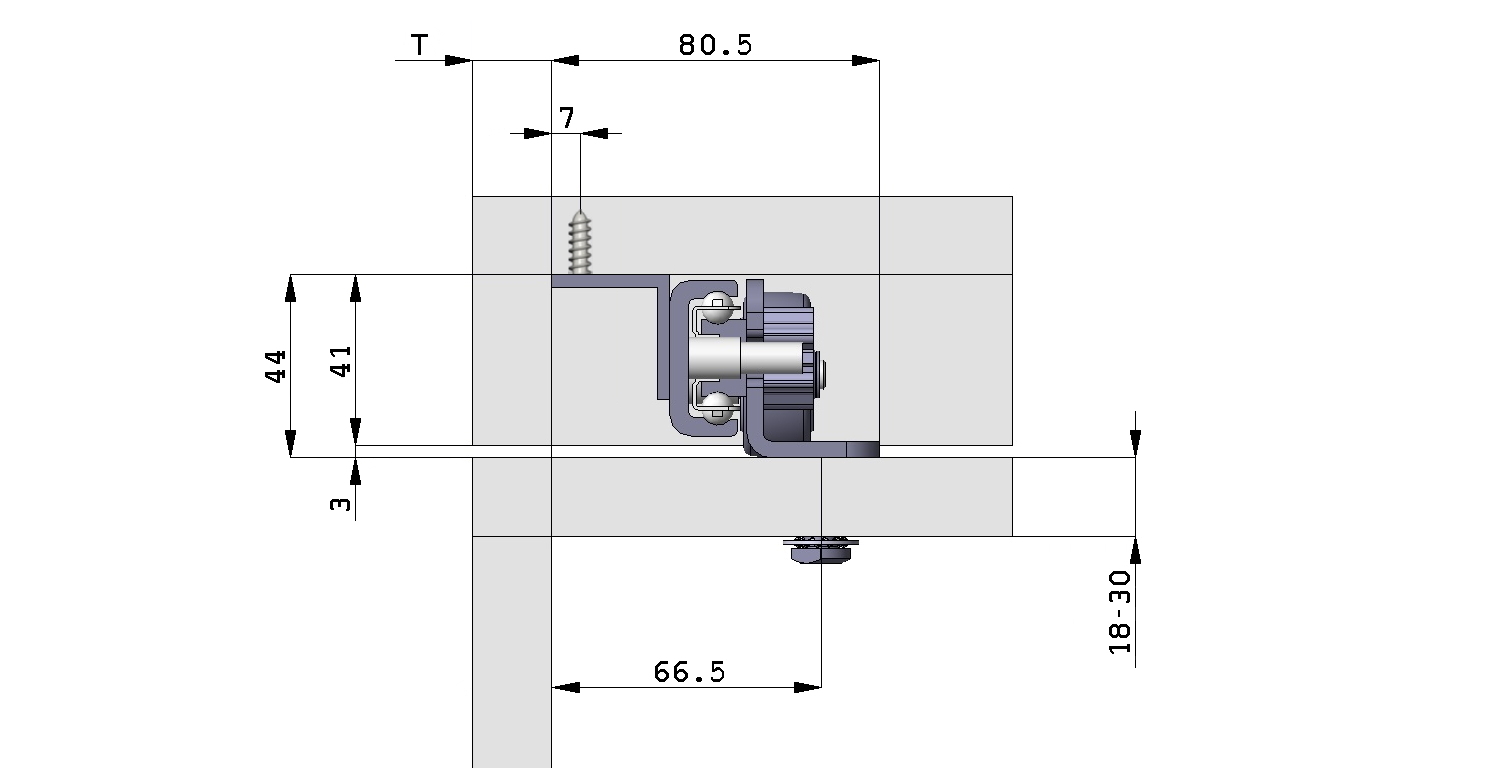

Fixed internal height of mm 44 between the bearing base and the sliding top.

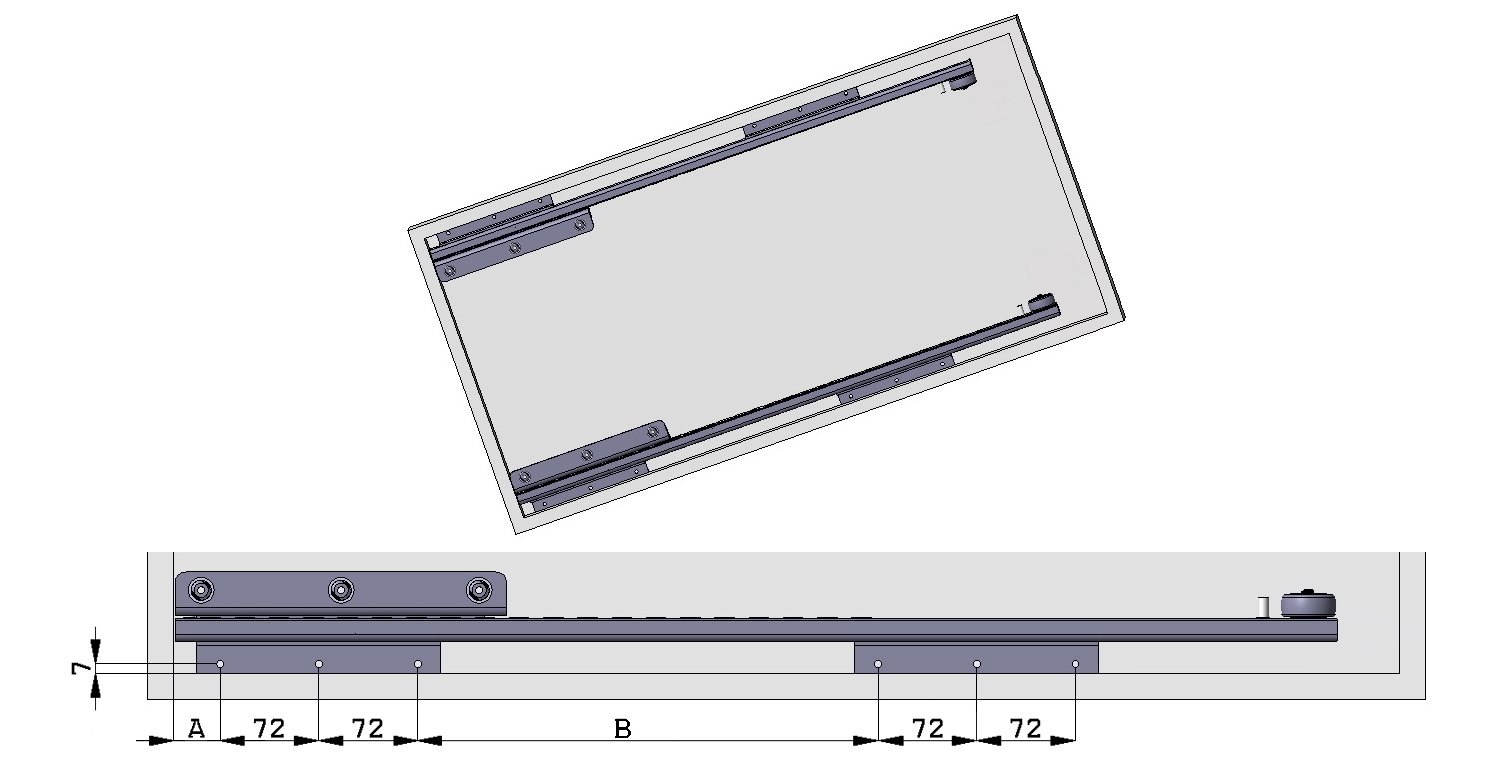

Direct assembly for diagonal sliding without the use of side supports for the runners.
single extension
hold-out feature
hold-in feature
horizontal adjustment
