Runners made of cold drawn steel designed to allow the longitudinal, lateral or diagonal sliding of surfaces and kitchen tops.
The mechanism, invisible once assembled, is equipped with hold-in and hold-out device.

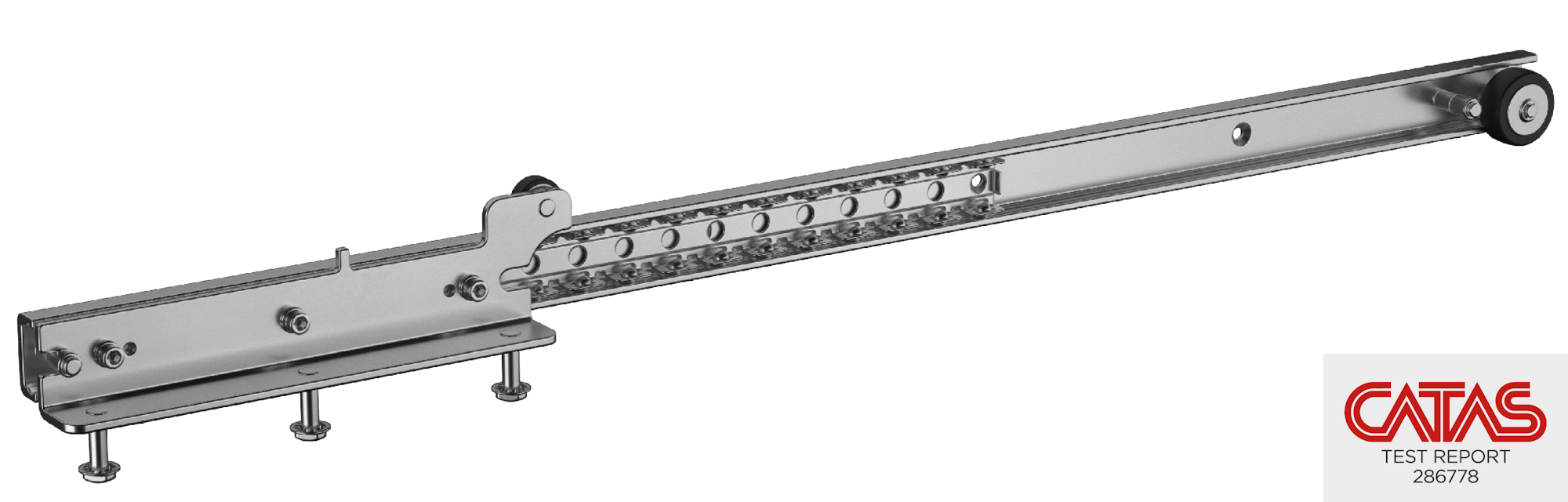

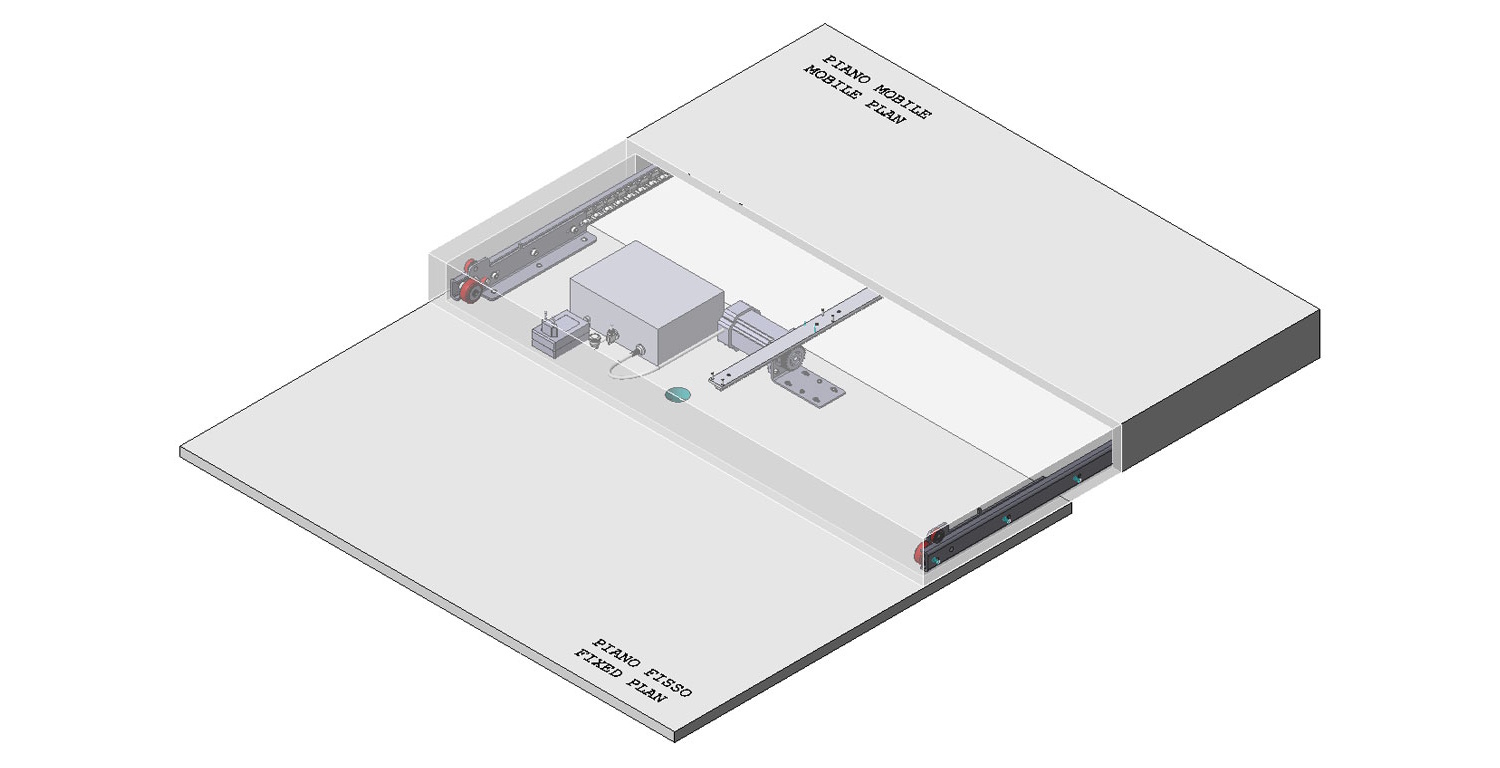

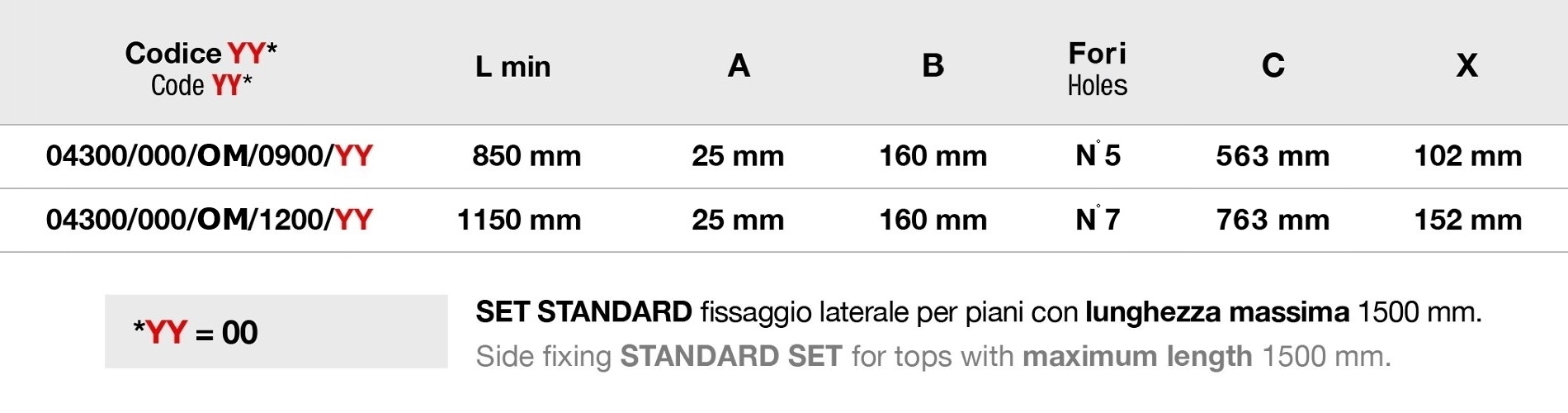

Surf 4300 Matik is quick and simple to install and consists of a pair of runners with maximum loading capacity Kg 120 and maximum sliding top width mm 1500, and an engine that allows the automation of the system.

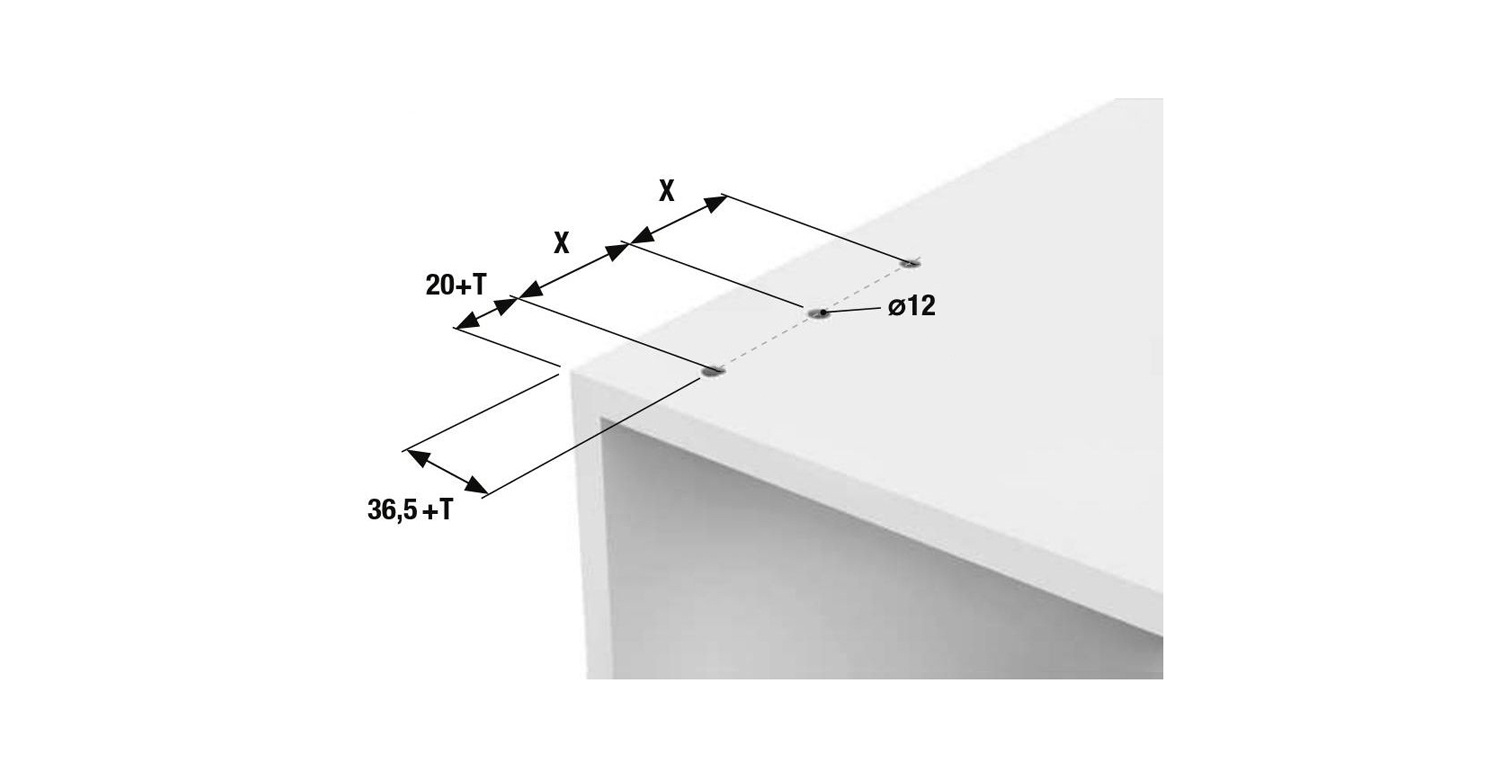

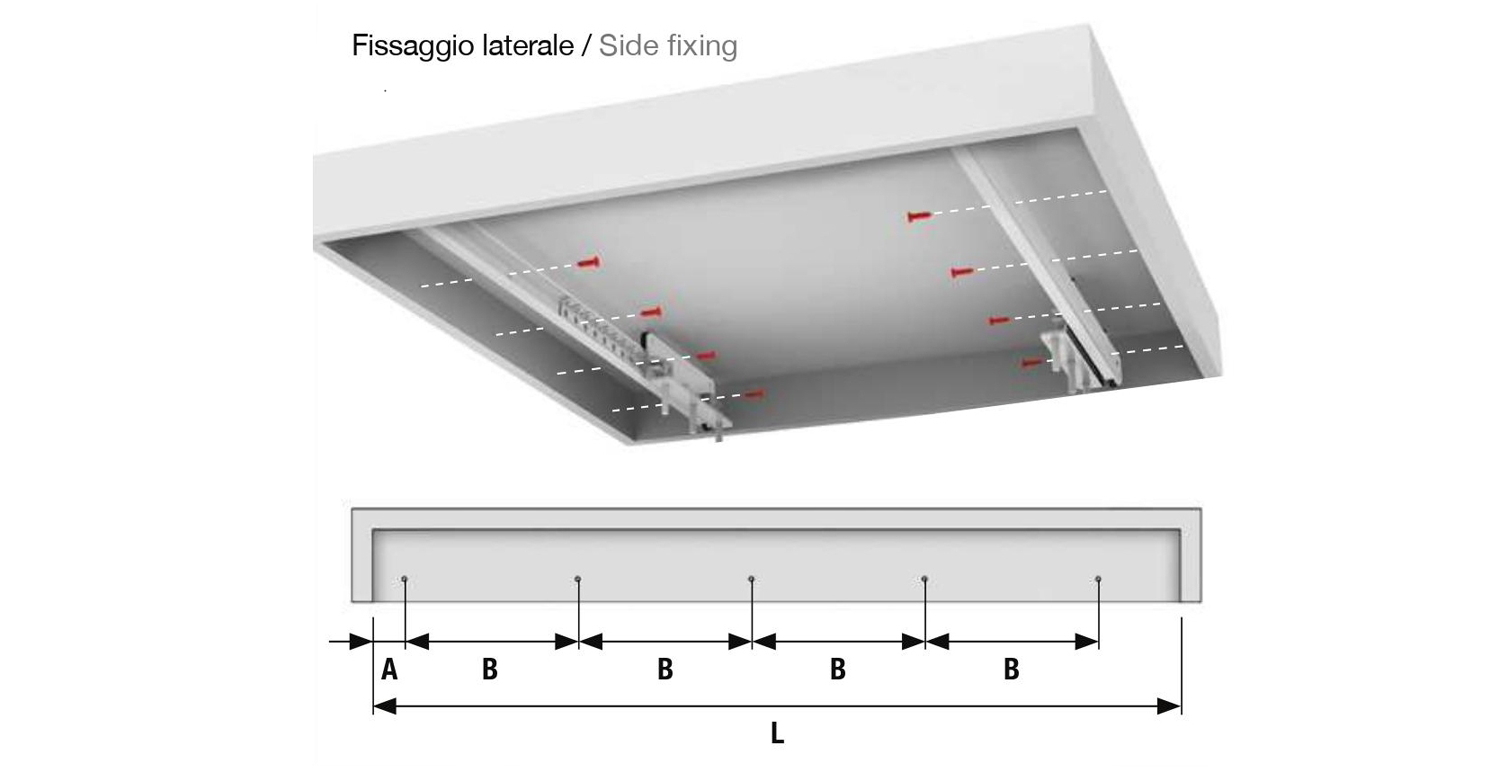

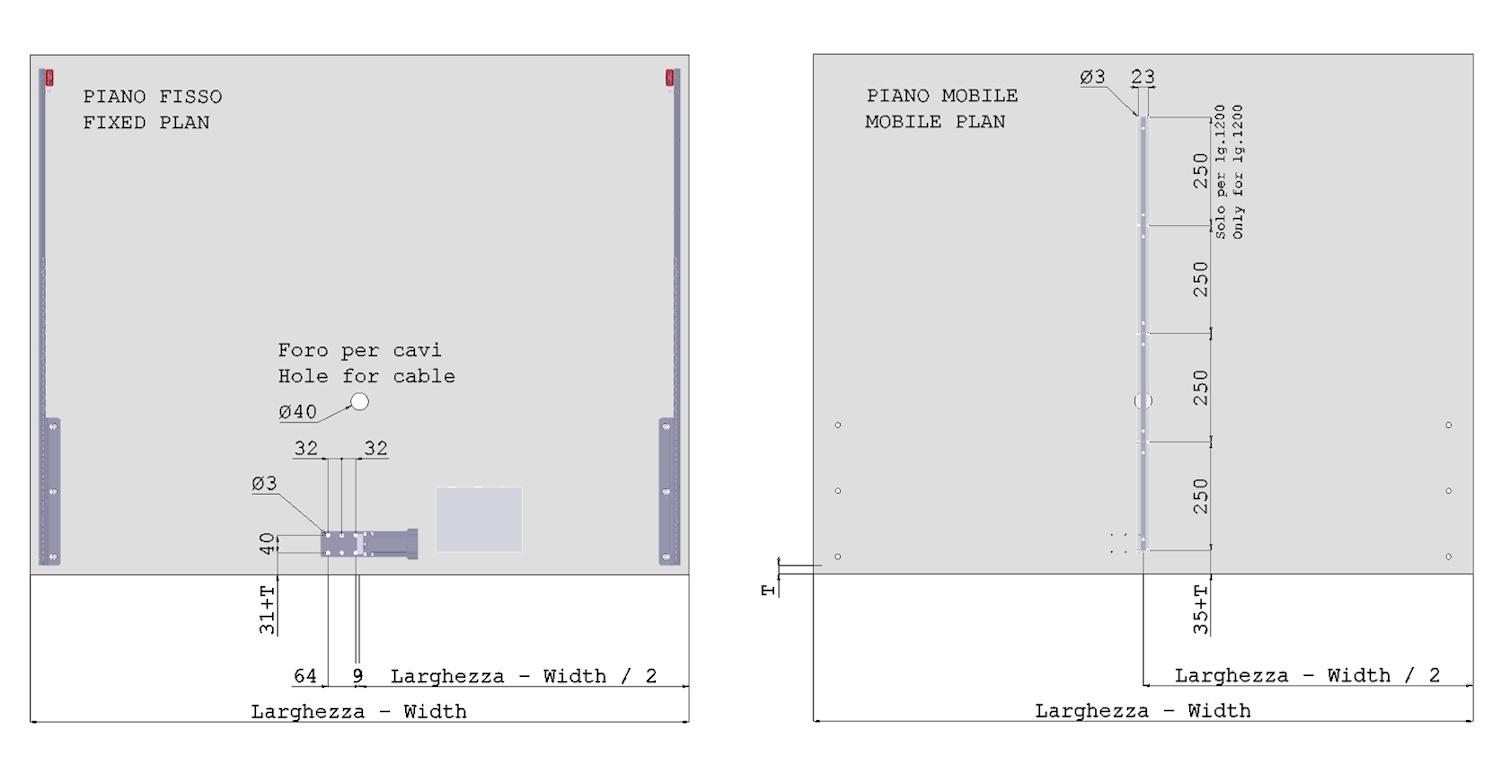

Fixing to the bearing base and to the sides of the sliding top.

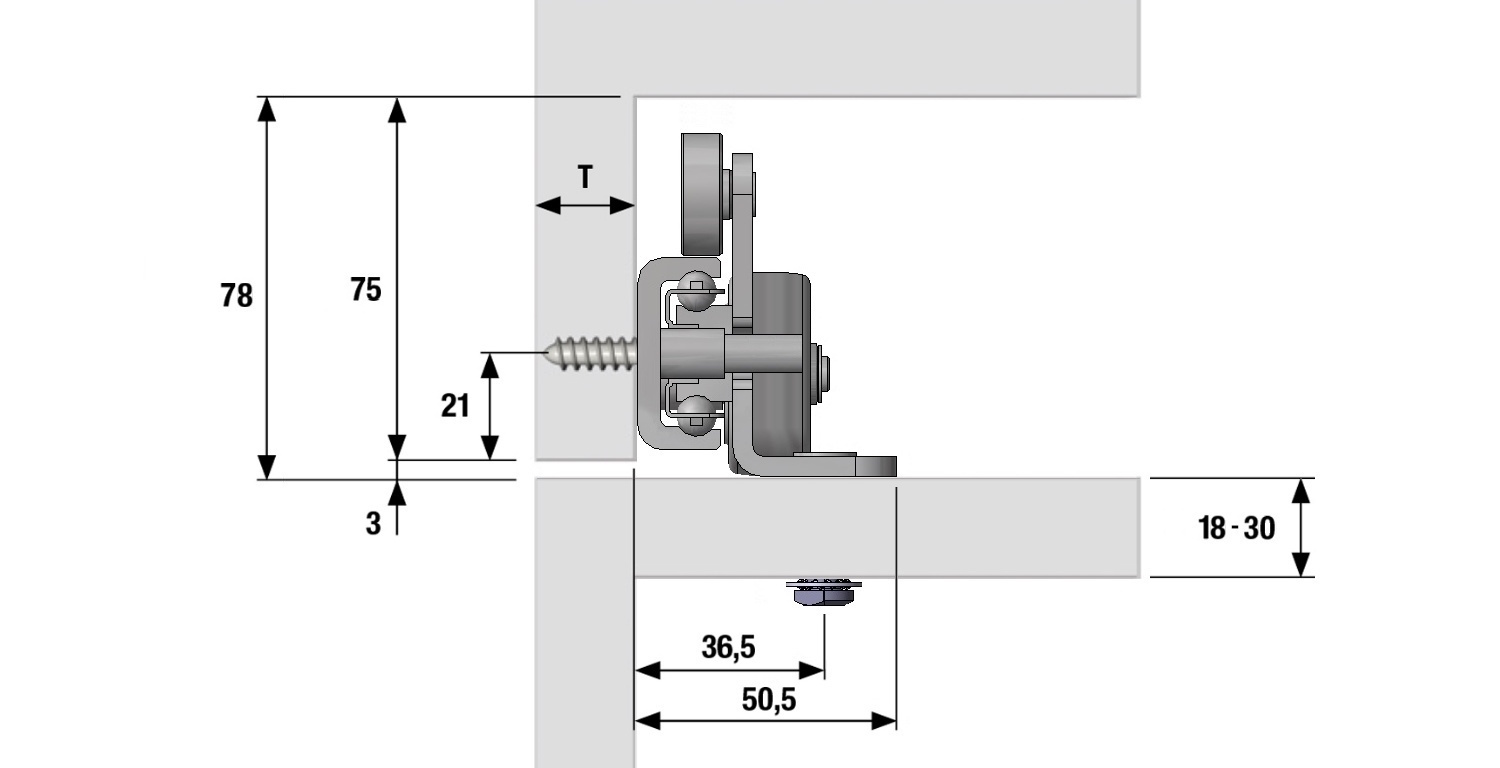

Fixed internal height of mm 78 between the bearing base and the sliding top.
In case of assembly for diagonal sliding it is required the installation of side supports for the runners not provided by Omge.
single extension
hold-out feature
hold-in feature
horizontal adjustment
automation
secure block
